Fixed-Ring Consolidation Cell

Supports the following standards: ASTM D2435, ASTM D3080, ASTM D5333, ASTM D4546, AASHTO: T216, BS: 1377:5

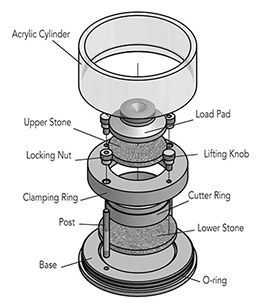

Complete cell assembly features stainless steel construction and self-trimming cutter ring. Cutter ring rests inside clamping ring on lower porous stone, which is larger than the sample. The top porous stone and loading pad rest on the sample. The assembly is fixed on the cell base and enclosed within an acrylic cylinder open to the atmosphere, which permits saturation of the sample. The cell comes complete with all the parts illustrated in the drawing below.

HM-1220.20
Fixed Ring Consolidation Cell Consolidation Cell Part, Fixed Ring, 2.0"

$611.00

HM-1220.242
Fixed Ring Consolidation Cell Consolidation Cell Part, Fixed Ring, 2.42"

$504.00

HM-1220.25
Fixed Ring Consolidation Cell Consolidation Cell Part, Fixed Ring, 2.5"

$611.00

HM-1220.30
Fixed Ring Consolidation Cell Consolidation Cell, Fixed Ring, 3.0"

$515.00

HM-1220.40
Fixed Ring Consolidation Cell Consolidation Cell, Fixed Ring, 4.0"

$1,045.00

HM-1220.50
Fixed Ring Consolidation Cell Consolidation Cell, Fixed Ring, 50mm

$605.00

HM-1220.70
Fixed Ring Consolidation Cell Consolidation Cell, Fixed Ring, 70mm

$413.00

HM-1220.75
Fixed Ring Consolidation Cell Consolidation Cell, Fixed Ring, 75mm

$523.00

HM-1220.100
Fixed Ring Consolidation Cell Consolidation Cell Part, Fixed Ring, 100mm

Call
800.544.7220

Accessories

Calibration Disk for Consolidation Cells and Shear Boxes

HM-001076
Load Ball, 5/8" 440 Stainless Steel: for use with all Consolidation Cells

$6.00

HM-1240.25
Soil Trimming Turntable for 2.5" Specimens

$990.00

Filter Paper

Replacement Parts

Load Pad for Consolidation Cells

Upper Stones for Consolidation Cells

Lower Stone (Fixed & Permeability) for Consolidation Cells

Acrylic Cylinder (Fixed and Floating) for Consolidation Cells

Clamping Ring (Permeability) for Consolidation Cells

Clamping Ring (Fixed) for Consolidation Cells

Base (Floating & Permeability) for Consolidation Cells

Cutting Ring for Consolidation Cells

Lower O-ring (Fixed) for Consolidation Cells

Upper O-ring (Permeability) for Consolidation Cells

HM-1220.25.3
Post for use with all Consolidation Cells

$22.00

HM-1220.25.5
Locking Nut for use with all Consolidation Cells

$6.00

HM-1220.25.6
Lifting Knob for use with all Consolidation Cells

$11.00

Literature

Manuals, Data Sheets & Safety Data Sheets

Elite Series Consolidation Brochure (Data Sheet PDF)

Standards

AASHTO: T216

BS: 1377:5
