Consolidation Frame, Dead-Weight

Consolidation Frame, Dead-Weight

Product Options

  Part Number & Name Price QTY
Consolidation Frame, Dead-WeightHM-1100A
Consolidation Frame, Dead-Weight
$1,420.00
Add to Cart

Consolidation Frame, Dead-Weight

Supports the following standards: ASTM D2435, ASTM D5333, ASTM D4546, AASHTO T216, BS 1377:5

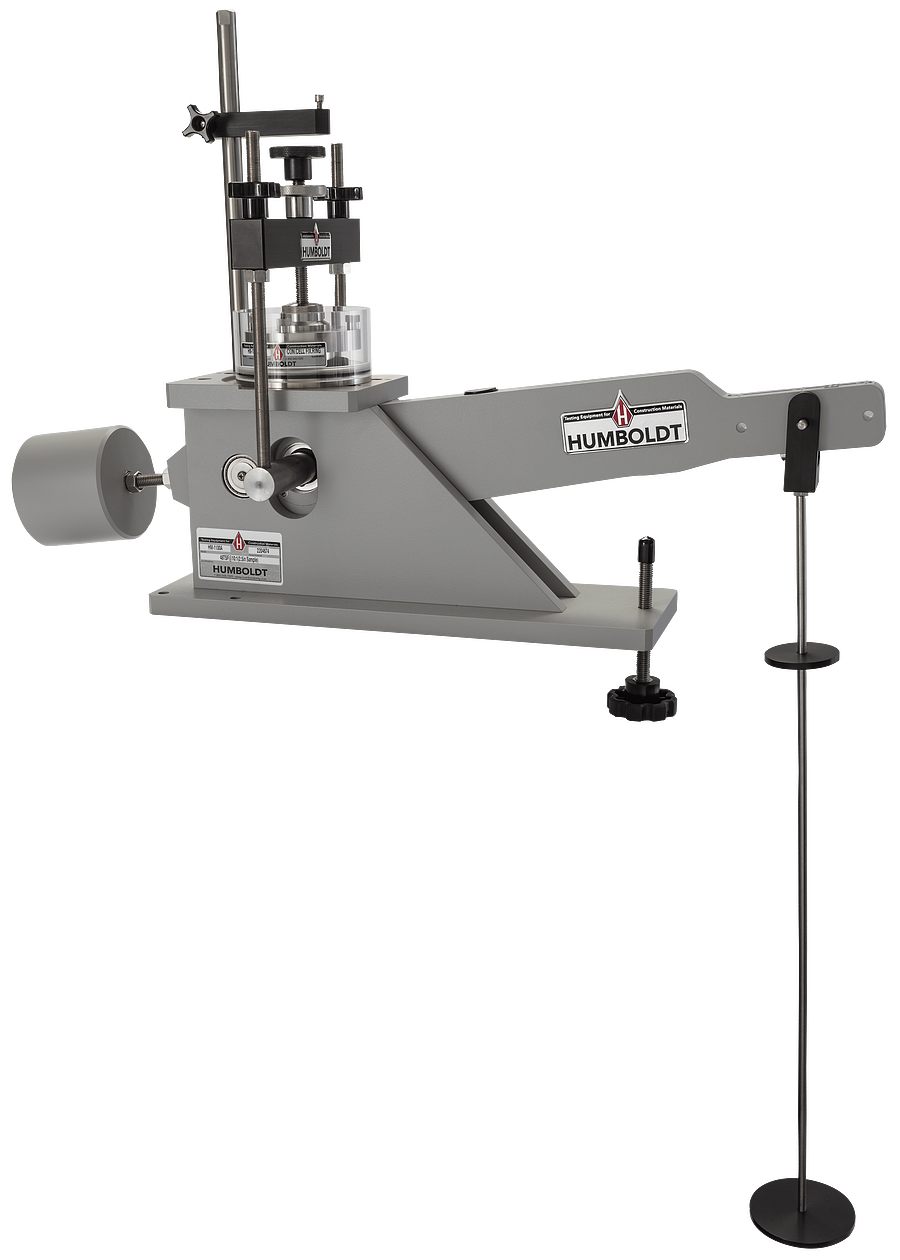

Able to survive in even the harshest laboratory environments, the HM-1100A will provide you with reliable service day-in and day-out. The design features a rugged frame manufactured from aluminum with stainless steel vertical rods, horizontal cross arms and beam support rods. The load arm incorporates 9:1, 10:1, and 11:1 beam ratios for greater flexibility and loading weight requirements. Using the 10:1 ratio on 2.5" (63 mm) diameter samples, the system is capable of producing loads up to 48 tsf (4,597 kPa).

The HM-1100A is sold without instrumentation. It can be configured as a standard unit with a mechanical dial gauge or when coupled with one of the Humboldt data loggers, the HM-1100A can be equipped with a digital indicator or with a strain transducer (LSCT). See the Specs tab above for a list of items needed for these setups. These additional items are listed on the Accessories tab above.

Features include:

  • Triple beam ratios minimize loading weight requirements
  • 48 tsf (5,148 kPa) maximum load capacity
  • Aluminum and stainless steel construction for corrosion resistance and long life
  • Wide range of consolidation cells available in fixed ring, floating ring, permeability and back-pressure designs
  • Loading weights available in both, tsf and kg versions
  • Basic unit does not include a gauge, order gauge separately
  • The HM-1100A can also be paired with our Data Loggers with digital indicators or strain transducers (LSCT).

Order Consolidation Cells, Gauges and Instrumentation Separately

DATA ACQUISITION SETUP FOR HM-1100A
Data Acquisition and Control for both the HM-1100A Dead-weight consolidation machine can be achieved with the use of one of Humboldt‘s 4-channel data loggers. The touch-screen monitor of the data logger provides test control and live test monitoring in either a stand-alone or computer-controlled configuration.
With the HM-1100A, dead-weight loads are controlled by physically adding weights to the consolidation frame. The data logger provides four (4) integral and independent data acquisition channels, which can be utilized in stand-alone configurations or accessed through a LAN-networked computer using Humboldt's NEXT Basic software

Stand-Alone Test Monitoring

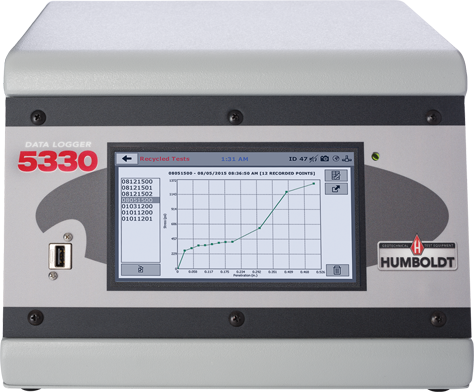

The touch-screen controller provides you with full, graphical monitoring of testing functions in a stand-alone application. The seven-inch, waterproof screen on the Humboldt Data Loggers provides at-a-glance monitoring of testing functions, in a real-time graphical display, without the use of a computer, building upon Humboldt‘s dedication to modular, stand-alone data acquisition.

In a stand-alone application, you will be able to run tests and display results while viewing tabulation, basic x-y graphs and instrument readings in real-time during the test, using user-defined, basic data acquisition. Test data is stored in the device and can be downloaded to a USB drive via the machine's FRONT USB port or the data can be transferred to a computer via the LAN port.

  • 4-channel data acquisition
  • Hi-res, 7", waterproof, touch-screen provides total control and real-time graphical display of tests
  • Machine/Test control and data acquisition via touch-screen

Computer Test Monitoring
Humboldt‘s NEXT Basic software can be downloaded from: https://www.humboldtmfg.com/support/software.php for use with a Humboldt data logger and computer. This software provides basic data acquisition and report generation for those using a computer for this purpose.
In addition, you can purchase Humboldt‘s HM-5100SW Consolidation module for consolidation test-specific set up and monitoring of the testing function.

  • Data acquisition via a networked computer
  • Provides the ability to use Humboldt's NEXT Software‘s HM-5100SW consolidation module
  • Real-time graphical chart and numerical display of tests via computer display
  • Effective sampling rate of 50 readings/sec.
  • Stores unlimited tests with up to 3000 points per test.
Specifications
Load capacity:48 tsf (4597 kPa)
Beam Ratios:9:1, 10:1 and 11:1
Frame Construction:Heavy-duty aluminum frame with stainless steel vertical, horizontal and beam support rods
Cell Platform:Anodized aluminum with locating pins for centering cells.
Dimensions (W x D x H):7.75" x 32" x 19.5 (197 x 812 x 495 mm)
Net weight:47 lbs (21kg)

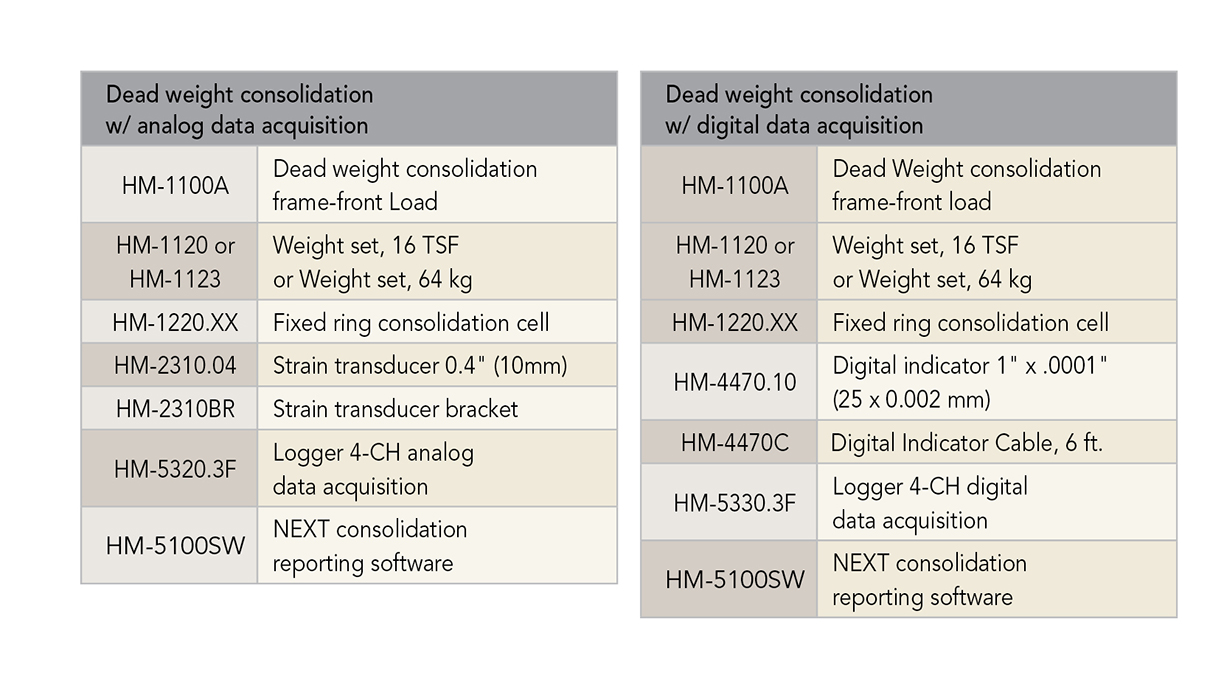

Typical Setup for HM-1100A Dead-weight Consolidation:
SKUQTYName
HM-1100A1Consolidation Frame, Dead-Weight
HM-11201Weight Set Consolidation Testing Weight Set, 16 TSF
HM-1220.201Fixed Ring Consolidation Cell Consolidation Cell Part, Fixed Ring, 2.0"
H-4471CC1Dial Gauge, Range: .500", Division: .0001", Dia.: 2.25", Brake: No, Counter-Clockwise
Specs Chart

Accessories

  Part Number & Name Price QTY
Frame Stand Frame StandClick for Options
Dial Indicators Dial IndicatorsClick for Options
Weight Set Weight SetClick for Options
Data Logger, Humboldt 4-Channel Analog, 120/220V 50/60Hz HM-5320.3F
Data Logger, Humboldt 4-Channel Analog, 120/220V 50/60Hz
$2,030.00
Linear Strain Conversion Transducers (LSCT) Linear Strain Conversion Transducers (LSCT)Click for Options
Transducer Application Brackets Transducer Application BracketsClick for Options
Data Logger, Humboldt 4-Channel Digital, 120/220V 50/60Hz HM-5330.3F
Data Logger, Humboldt 4-Channel Digital, 120/220V 50/60Hz
$2,030.00
Digital Indicators Digital IndicatorsClick for Options
Data Cable for use with Digital Indicators and Humboldt HM-5330.3F Data Loggers HM-4470C
Data Cable for use with Digital Indicators and Humboldt HM-5330.3F Data Loggers
$84.50
Consolidation Module for NEXT Software HM-5100SW
Consolidation Module for NEXT Software
$950.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
HM-1100A MAN 0712 (Product Manual PDF)

Standards

Standards
ASTM D2435
ASTM D5333
ASTM D4546
AASHTO T216
BS 1377:5
Related Items
  • Consolidation Module for NEXT Software

    HM-5100SW

    Consolidation Module for NEXT Software

    Consolidation test-specific enhancement to Humboldt's NEXT software

  • Frame Stand



    Frame Stand

    Butcher Block Table-top with heavy-duty, steel frame provides stable mounting platform.

  • ConMatic IPC, Automated, Soil Consolidation System

    HM-5470.3F

    ConMatic IPC, Automated, Soil Consolidation System

    Features fully-automated, incremental pressure control, freeing up technician time

  • ConMatic Consolidation Machine



    ConMatic Consolidation Machine

    Small footprint and versatility for use with all types of consolidation cells and measuring devices
