Floating Ring Consolidation Cell

Floating Ring Consolidation Cell

Product Options

  Part Number & Name Price QTY
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.0"HM-1210.20
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.0"
$442.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.42"HM-1210.242
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.42"
$458.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.5"HM-1210.25
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 2.5"
$458.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 3.0"HM-1210.30
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 3.0"
$468.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 4.0"HM-1210.40
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 4.0"
$702.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 50mmHM-1210.50
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 50mm
$458.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 70mmHM-1210.70
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 70mm
$458.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 75mmHM-1210.75
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring, 75mm
$458.00
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring– 100mmHM-1210.100
Floating Ring Consolidation Cell Consolidation Cell Part, Floating Ring– 100mm
Call
Add to Cart

Floating Ring Consolidation Cell

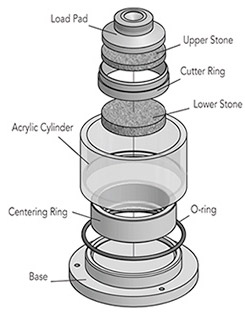

Complete cell assembly features stainless steel construction with self-trimming cutter ring. Similar in construction to a fixed ring cell with the exception that the lower porous stone fits inside the cutter ring and can move vertically within it. The sample ring is also free to move vertically. The cell comes complete with all the parts illustrated in the drawing below.

The Floating Ring Consolidation Cell supports the following standards: ASTM D2435, ASTM D4546, AASHTO: T216, BS: 1377:5

Fixed Ring
Consolidation Cell
2.0" HM-1220.20
2.42" HM-1220.242
2.5" HM-1220.25
3.0" HM-1220.30
4.0" HM-1220.40
50mm HM-1220.50
70mm HM-1220.70
75mm HM-1220.75
100mm HM-1220.100
Specs Chart

Literature

Manuals, Data Sheets & Safety Data Sheets
Elite Series Consolidation 0717 (Data Sheet PDF)
Elite Series Consolidation Spanish es (Data Sheet PDF)

Standards

Standards
ASTM D2435
ASTM D4546
AASHTO: T216
BS: 1377:5
