Distillation Set for Residue and Oil Distillate in Emulsified Asphalts

The distillation set is designed to meet the requirements of the Standards listed below. Use of this set will allow the user to determine the representative portion of residue in emulsified asphalts accurately. Two models are available: the H-2285 uses the large H-2345 still, and the H-2290 uses the small H-1871 still. For a detailed explanation of the test procedure, refer to the ASTM or AASHTO standards listed below. The complete set comprises the items listed in the chart below.

Order H-2600.7F thermometer separately. Click Here.

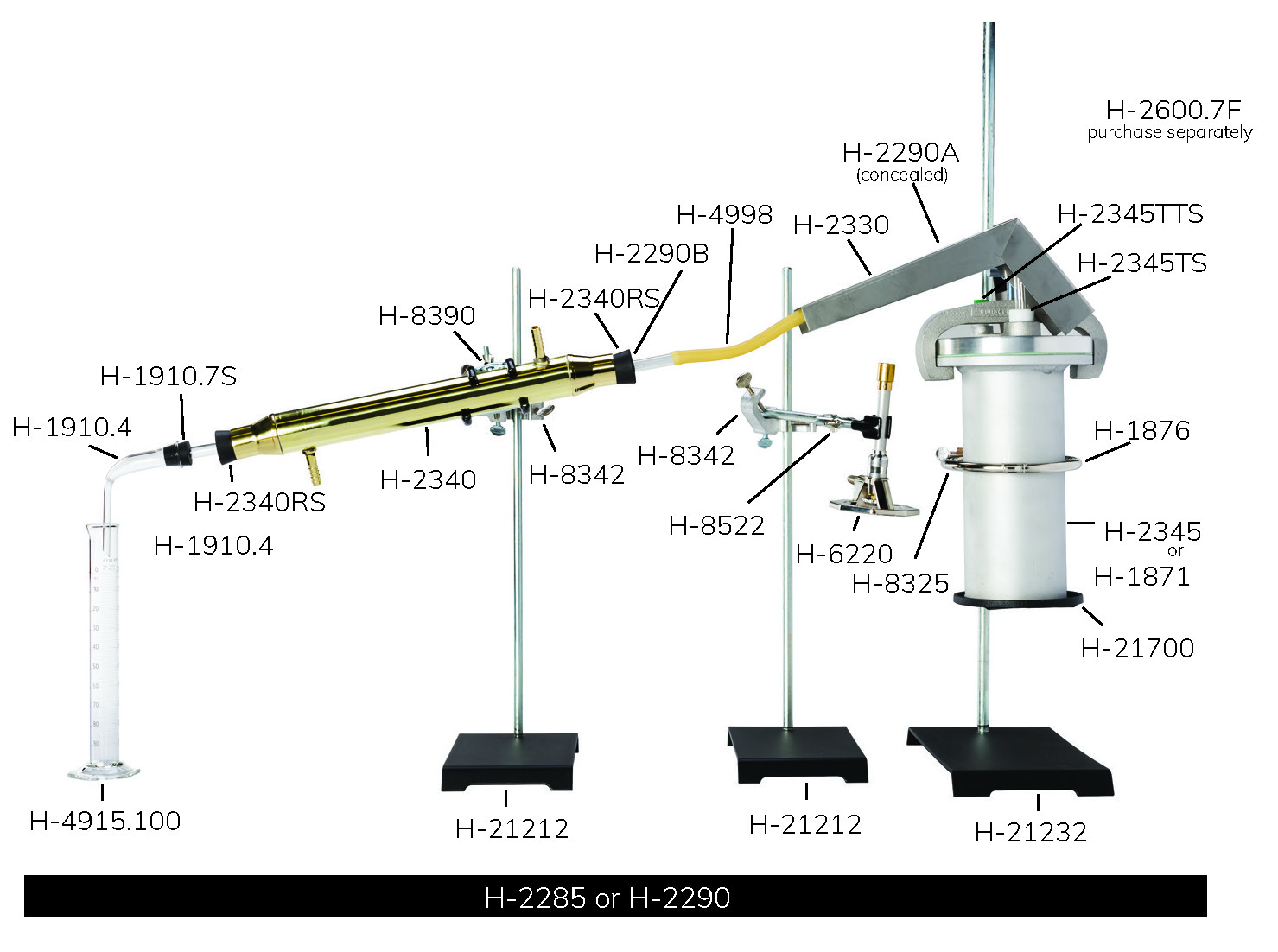

Distillation Set Components

• Still, aluminum, small: H-1871
• Ring burner: H-1876
• Support stands: (2 in set) H-21212
• Support stand: H-21232
• Support shelf: H-21700
• Burner: H-6220
• Condenser: H-2340
• Graduated cylinder: H-4915.100

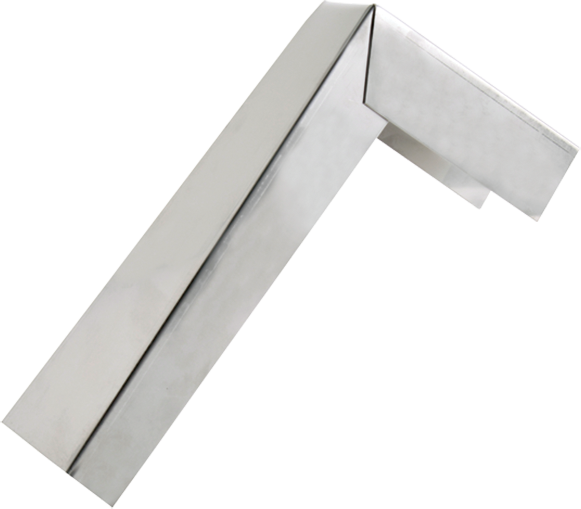

• Tube shield: H-2330
• Straight glass tube: H-2290B
• Bent glass tube: H-2290A
• Adapter: H-1910.4
• Clamp, brass: H-8325
• Clamp: H-8390
• Clamp holders (2 in set): H-8342
• Clamp: H-8522
• Rubber tubing: H-4998
• Still stopper (1): H-2345TTS
• Stopper, ptfe: H-2345TS
• Stoppers, rubber: H-2340RS
• Stopper, rubber: H-1910.7S

For a more detailed view of the parts available, please visit our catalog page 7.48.
