Humboldt Concrete Air Meter

Humboldt Concrete Air Meter

Product Options


Part Number & Name
Price QTY
H-2783A
Humboldt Concrete Air Meter
$690.00
Add to Saved Cart

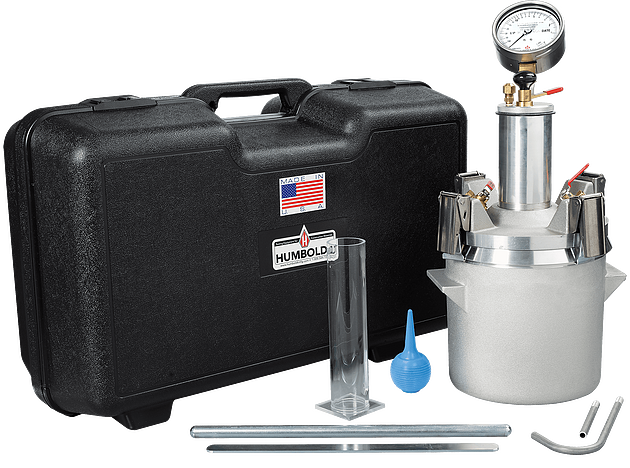

Humboldt Concrete Air Meter

Supports the following standards: ASTM C231, ASTM C31, ASTM C192, AASHTO T152

The H-2783A air meter, which exceeds ASTM requirements, features the Humboldt, all-brass super pump, the most reliable and highest quality pump available. The meter’s easy-to-use, and extra durable stainless steel clamping system employs four, one-piece, self-locking clamps that quickly seal the lid to the base with proper tension aided by an o-ring to assure a watertight seal. The large, easy-to-read, 4-inch diameter, heavy-duty, direct percentage gauge with calibration adjustments is accurate to the nearest 0.1%. The bucket, or pressure chamber, features EZ-grip, cast handles, which improve usability. This is especially true when the bucket is also used as a 0.25 cu. ft. unit weight measure. The lid of the pressure meter features a smooth sloped top so water and concrete wipe right off. By eliminating the cavities in the lid that trap and hold concrete, maintenance and repair problems are greatly reduced. The meter also features a machined base, which ensures the meter sets level when conducting tests. The kit includes a durable plastic carrying case; a tamping rod; strike-off bar; rubber bulb syringe; plastic calibration vessel; inside calibration tube, outside calibration tube and operating instructions.

Features Include:

  • Humboldt all-brass Super Pump
  • Large, heavy-duty, easy-to-read gauge
  • Cast handles for secure grip
  • Bucket can be used as a 0.25 cu. ft. unit weight measure
  • Complete with all needed accessories and case

The Kit Includes:

  • A durable plastic carrying case with die-cut foam padding
  • A tamping rod
  • Strike-off bar
  • Rubber bulb syringe
  • Plastic calibration vessel
  • Inside calibration tube
  • Outside calibration tube
  • Operating instructions

Accessories


Part Number & Name
Price QTY
H-2793
Concrete Air Meter Calibrator (5%), Aluminum
$85.00
H-2789
Concrete Air Meter Calibrator (5%), Brass
$120.00
H-2788
Concrete Air Meter Calibrator (5%), Plastic
$56.50
H-3731
Scoop, One-piece Aluminum
$28.00
Add to Saved Cart

Replacement Parts

Replacement Part Diagram

Part Number & Name
Price QTY
H-2783.60L
Latch for Plastic Air Meter Case
$5.00
H-2785.1
Pressure Chamber for Concrete Air Meters
$51.00
H-2783.2
Pressure Chamber Cap for Concrete Air Meters
$50.00
H-2783.3
Pressure Chamber Elbow for Concrete Air Meters
$9.00
H-2785.4
Pressure Chamber Gasket for Air Meters
$3.70
H-2783.5
Air-Release Stem for Concrete Air Meters
$6.00
H-2783.6
Air-Release Cap for Air Meters
$3.00
H-2783.6A
Release Cap Gasket for Air Meters
$1.90
H-2785.7
Air Meter Gauge
$100.00
H-2783.12
Needle Valve Stem
$23.00
H-2785.12
Needle Valve Nut
$1.00
H-2785.13
Needle Valve Lever
$10.00
H-2785.14
Needle Valve Spacer
$8.00
H-2785.15
Needle Valve O-Ring
$1.40
H-2783.17
Needle Valve Spring
$4.00
H-2785.18
Needle Valve Seat Assembly
$15.00
H-2783.19
Cover
$230.00
H-2785.20
Cover O-Ring
$10.00
H-2783.21
Needle Valve Spring Retainer
$5.00
H-2783.24
Cover Petcock
$12.50
H-2783.25
Base
$250.00
H-2785.41
Needle Valve Seat Gasket
$1.40
H-2783.26
Latch Assembly
$36.00
H-2783.27
Latch
$10.50
H-2783.28
Adjusting Rod
$4.60
H-2783.29
Latch Assy. Screw
$1.00
H-2785.DB
Super Pump for Air Meters
$56.00
H-2783.39
Gasket Replacement Kit
$15.00
H-2783.30
Calibration Vessel, Plastic
$25.00
H-2785.31
Calibration Vessel, Metal
$32.00
Calibration Tube
H-2785.34
Strike-off Bar
$10.00
H-2785.35
Tamping Rod 5/8" x 16"
$17.00
H-2785.36
Syringe, Rubber Bulb
$6.20
H-2783.70
Case for H-2783A Air Meter
$135.00
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

Air Meters-0222 (Data Sheet PDF)

H-2783A AirMeter 0322 (Product Manual PDF)

Standards

Standards

ASTM C231

ASTM C31

ASTM C192

AASHTO T152
