Load Frame for Marshall Testing

Load Frame for Marshall Testing

Product Options

  Part Number & Name Price QTY
Marshall Compression Machine, 120V 60HzH-1339B
Load Frame for Marshall Testing Marshall Compression Machine, 120V 60Hz
$3,310.00
Marshall Compression Machine, 220V 60HzH-1339B.2F
Load Frame for Marshall Testing Marshall Compression Machine, 220V 60Hz
$3,350.00
Marshall Compression Machine, 220V 50HzH-1339B.5F
Load Frame for Marshall Testing Marshall Compression Machine, 220V 50Hz
$3,330.00
Add to Cart

Load Frame for Marshall Testing

Supports the following standards: ASTM D5581, ASTM D6926, ASTM D6931, AASHTO T245, AASHTO T283, BS 598, EN12697-34

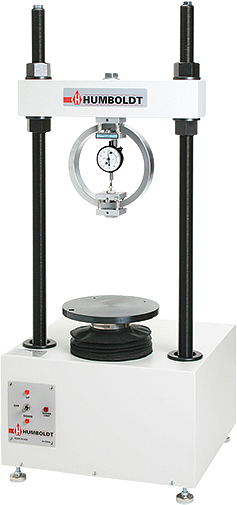

Load frame designed specifically for testing the resistance to plastic flow of bituminous paving mixtures— the Marshall test. Machine has a one-speed motor with reversing switch that produces a uniform vertical movement of 2" (51mm) per minute. Unit includes a H-4454.100 calibrated load ring and dial indicator for determining test load. Load capacity is 11,000 lbf. (50kN). Maximum piston travel is 3.5" (88mm). Overall dimensions are: 18" x 18" x 38.5"H (457 x 457 x 978mm).

Typical Setup for H-1339B
SKUQTYName
H-1339B1Marshall Compression Machine, 120V 60Hz
H-4454.1001Load Ring with analog dial indicator, 11000lbf, 50.0kN, 5000kgf
H-13441Dial Flowmeter Kit for Marshall Asphalt Testing
H-13421Marshall Breaking Head, 4"

Accessories

  Part Number & Name Price QTY
Marshall Breaking Head Marshall Breaking HeadClick for Options
Lottman Breaking Head Lottman Breaking HeadClick for Options
Dial Flowmeter Kit for Marshall Asphalt Testing Dial Flowmeter Kit for Marshall Asphalt TestingClick for Options
Dial Gauge Flowmeter Dial Gauge FlowmeterClick for Options
Guide Sleeve For Marshall Asphalt Testing Flowmeter Kit H-1344.1
Guide Sleeve For Marshall Asphalt Testing Flowmeter Kit
$60.00
HM-1327CP
Chart Paper, Dual-Scale
$14.30
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-1339B man 08.08 (Product Manual PDF)

Standards

Standards
ASTM D5581
ASTM D6926
ASTM D6931
AASHTO T245
AASHTO T283
BS 598
EN12697-34
