Load Frame, Multi-Speed Load Frame

Supports the following standards: ASTM D1883, ASTM D2850, ASTM D2166, ASTM D4767, ASTM D5581, ASTM D6927, AASHTO T193, AASHTO T296, AASHTO T297, AASHTO T208, AASHTO T245, AASHTO T246, BS 1377: PART 4: 1990, BS 1377: PART 7: 1990, BS 1377: PART 8: 1990, BS 598: PART 107

The HM-2850 Multi-speed Load Frame is designed for those who want a high-quality, but simple, multi-purpose load frame without built-in data acquisition capabilities. The HM-2850 is ideal for applications where the operator is either not concerned with data acquisition; or, already has or is planning to construct their own data acquisition system. With its large 7" color, touchscreen, the HM-2850 provides the operator with the ability to precisely select any speed with five decimal accuracy within the machine’s speed range.

The HM-2850 features a quiet, direct drive, stepper motor that provides a range of loading speeds from 0.05 to 2.00000 (0.00001 to 50.80000 mm/min). This speed range is more than adequate for the majority of standard soil tests. The HM-2850 can also be used for asphalt Marshall and TSR testing and features a rapid travel speed of 2.25 in/min. for moving the platen into position quickly.

If you have questions about Load Frames, CBR or Marshall Testing, or need help selecting equipment, please call us at 1.800.544.7220 or use our Ask Humboldt form.

Load Capacity:11000 lbf (50kN)
Speed Range:0.05 to 2.00000 inch/min. .00000-50.800000 mm/min
Platen Size:8" (203mm)
Platen Travel:4" (100mm)
Clearance, Vertical:40" (1000mm)
Clearance, Horizontal: 11" (279mm)
Voltage:110/220V 50/60Hz - 5.0amps
Dimensions:17 x 22 x 51"(432 x 559 x 1295mm)
Net Weight:300 lbs (136kg)

Typical CU/UU Triaxial Setup with HM-2850

HM-2850.3F:Load Frame, Multi-Speed for CBR Testing
H-4454.020Load Ring with analog dial indicator, 2200lbf, 10.0kN, 1000kgf
H-4463Dial Gauge, Range: 2.000", Division: .001", Dia.: 2.75", Brake: No
HM-4170Pore Pressure Transducer

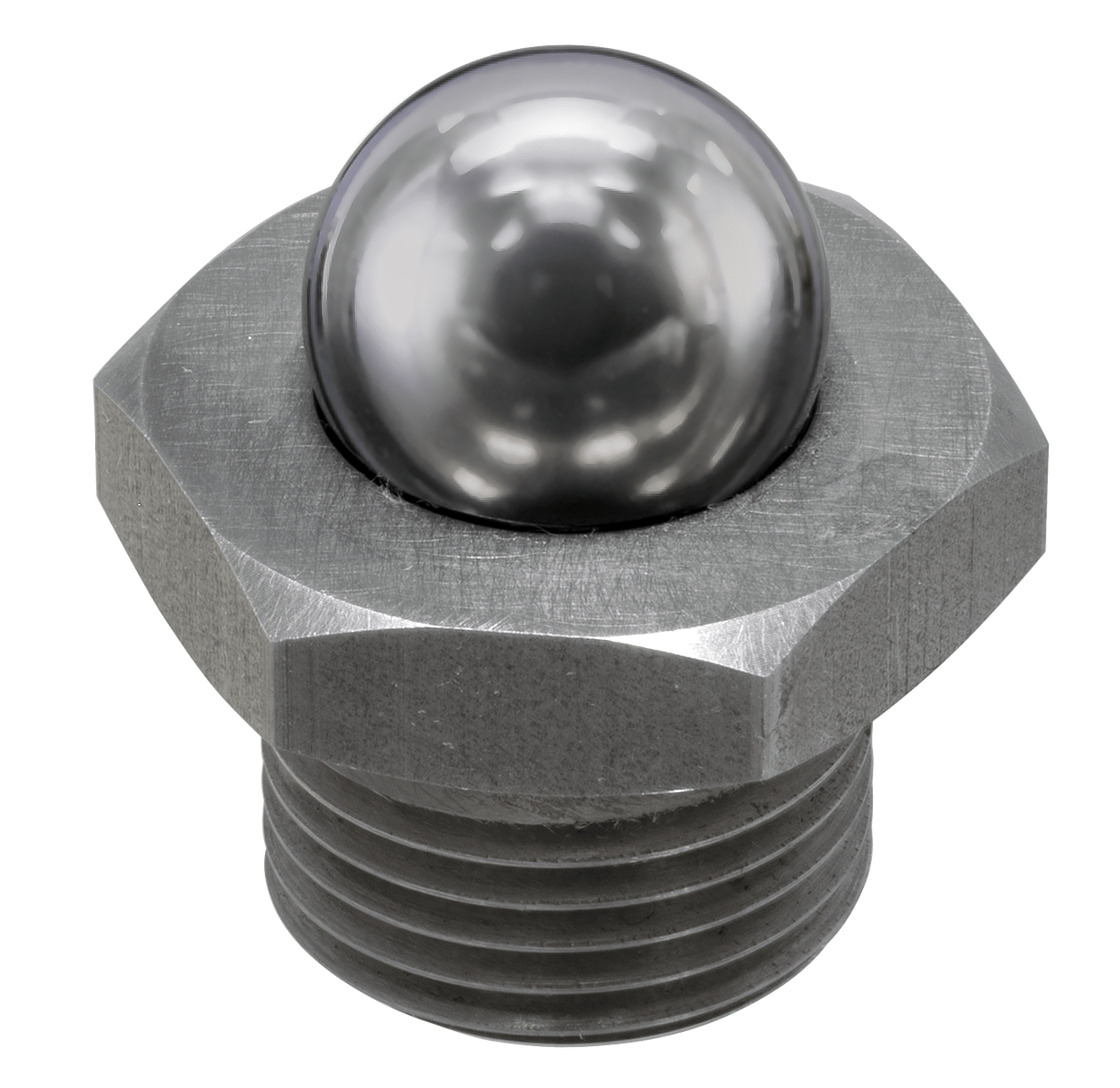

HM-200387Ball Seat Adapter (3/4"-16)
HM-2350Single Channel Display, 120V 60Hz— 4 Digit Accuracy
HM-4150.3FFlexPanel Control Panels FlexPanel, 1-Cell Control Panel, 2-150 psi (0.1 psi)
HM-4140.3F1FlexPanels - Master Control Panel FlexPanel Master Control Panel, 2-150 psi (0.1 psi)
HM-4187A.3F17 x 22 x 51"(432 x 559 x 1295mm)
H-1763AHigh Vacuum Pump, 120V 60Hz
HM-4199BTriaxial Cells for up to 2.8" Samples Triaxial Cell, Standard Cell
HM-4199.20Triaxial Cap and Base Set, Anodized Aluminum Triaxial Cell, 2.0" Cap and Base Set, Anodized Aluminum

Typical Unconfined Compression Setup with HM-2850

HM-2002Upper Unconfined Platen
HM-3000.10.5Displacement Contact Assembly
H-4454.005Load Ring 500 lbf (2.5kN)
H-4463Dial gauge 2.0" travel 0.001" divisions

Typical Soil Cement Setup with HM-2850

HM-2003EUpper Swivel Platen
H-4454.050Load Ring, 5,000 lbf (25kN)
Typical Setup for HM-2850.3F
HM-2850.3F1Load Frame, Multi-Speed for CBR Testing
H-4454.1001Load Ring with analog dial indicator, 11000lbf, 50.0kN, 5000kgf
H-13441Dial Flowmeter Kit for Marshall Asphalt Testing
H-13421Marshall Breaking Head, 4"
