FlexPanels - 1-Cell Control Panel

FlexPanels - 1-Cell Control Panel

Product Options


Part Number & Name
Price QTY
HM-4150.3F
FlexPanel Control Panels FlexPanel, 1-Cell Control Panel, 2-150 psi (0.1 psi)
$5,350.00
HM-4150M.3F
FlexPanel Control Panels FlexPanels, 1-Cell Control Panel, 14-1000 kPa (1 kpa)
$5,450.00
Add to Saved Cart

FlexPanels - 1-Cell Control Panel

Supports the following standards: ASTM D4767, ASTM D5084, ASTM D6035, ASTM D7181, BS 1377 PART 6 1990

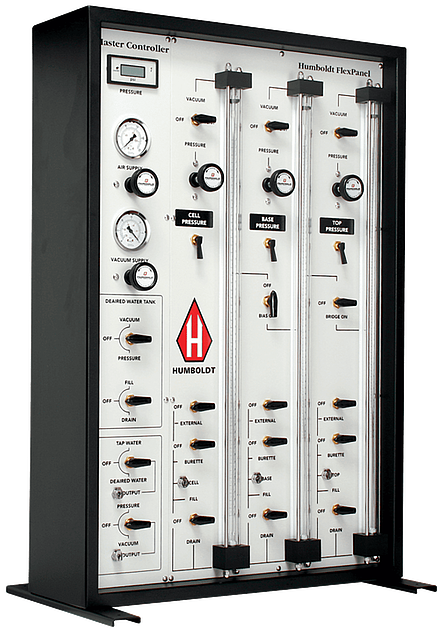

The HM-4150 1-cell, 3-burette control panel provides pressure controls and readouts for permeability and triaxial applications. It can control all the functions of a single cell, however with the addition of Auxillary Panels it can control the operations of up to five (5) cells.

Controls include: a digital, readout pressure meter, a pressure supply gauge, a master pressure regulator, a vacuum supply gauge, a master vacuum regulator, de-aired water tank controls, tap and de-aired water supply outlets and pressure and vacuum outlets.

FlexPanels can manually measure volume change or permeability in a triaxial test sample without the use of a volume change apparatus, a distinct benefit when compared to air/water bladder systems.

For more information and details about Humboldt's single-machine solutions for triaxial and permeability testing, click here.

Specifications
  • Bias pressure regulator allows simultaneous control of confining
  • back pressures, while maintaining a constant differential
  • Longer Burette and 0.02ml graduation give more accurate results, better productivity, and faster turnaround
  • Bridge feature delivers simultaneous control of base and top pressures by adjusting one pressure regulator simplifying testing
  • Quick-connect hookups for fast and reliable set up.
  • Master control panel houses digital pressure readout for the controlling pressure, inlet vacuum regulator & gauge, inlet pressure regulators & gauge, de-aired water tank controls, tap & de-aired water supply outlets, and pressure & vacuum outlets
  • Comply with ASTM D5084; BS 1377 Part 6 1990.
  HM-4140.3F HM-4140M.3F HM-4150.3F HM-4150M.3F HM-4160.3F HM-4160M.3F HM-4150A HM-4160A
Pressure/ Resolution 2-150 psi (0.1 psi) 14-1000 kPa (1 kPa) 2-150 psi
(0.1 psi)
14-1000 kPa (1 kPa) 2-150 psi
(0.1 psi)
14-1000 kPa (1 kPa) Not Applicable
Vacuum 0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
0-14.7 psi
or 30 Hg
(0-100kPa)
or 30 Hg
Inner Burette
Cell Not Applicable 50cc x 0.1 cc (ml)
Top Not Applicable 10cc x 0.02 cc (ml)
Base Not Applicable 10cc x 0.02 cc (ml)
Outer Burette
Cell Not Applicable 400 cc (ml)
Top Not Applicable 460 cc (ml)
Base Not Applicable 460 cc (ml)
Voltage 110/220VAC 50/60Hz Not Applicable
Power 6 watts
Operating Temperature 14 to 158°F (-10 to 70°C)
Dimensions 8 x 8 x 37.5"
(203 x 203 x 952mm)
8 x 25.5 x 37.5"
(203 x 648 x 952mm)
8 x 43.5 x 37.5"
(203 x 1105 x 952mm)
8 x 19.5 x 37.5"
(203 x 495 x 952)
8 x 37.5 x 37.5"
(203 x 952 x 952)
Shipping Weight 35lb (16kg) 95lb (43kg) 145lb (66kg) 77lb (35kg) 133lb (60kg)

Literature

Manuals, Data Sheets & Safety Data Sheets

Distribution Panels FlexPanels (Data Sheet PDF)

Humboldt Triaxial Equipment Guide-LR0417 (Data Sheet PDF)

HM-4150-40-60-manual (Product Manual PDF)

FallingHeadRisingTailPermeabilityManual (Product Manual PDF)

ToPerformConstantHeadPermeability (Product Manual PDF)

SPANISH Triaxial-FlexPanels-Cells-Setup-Manual (Product Manual PDF)

Triaxial-FlexPanels-Cells-Setup-Manual (Product Manual PDF)

Standards

Standards

ASTM D4767

ASTM D5084

ASTM D6035

ASTM D7181

BS 1377 PART 6 1990
