Load Frame, Balanced Mix, Automated

Load Frame, Balanced Mix, Automated
New

Product Options


Part Number & Name
Price QTY
HM-5125A.3F
Load Frame, Balanced Mix, Automated
$6,150.00
Add to Saved Cart

Load Frame, Balanced Mix, Automated

Supports the following standards: ASTM D6927, ASTM D8225, ASTM D8044, Ideal-CT (TTI Method), ASTM D5581, ASTM D6931, AASHTO TP124 (IL Method), AASHTO T245, AASHTO T283, BS 598, EN12697-34

Humboldt‘s HM-5125A.3F load frame has been designed to provide precise test rate control for the automated testing of balanced mix samples. Tests that can be run are:

  • Marshall — ASTM D6927, AASHTO T245
  • TSR — AASHTO T283
  • I-FIT (SCB IL Method) — AASHTO TP124
  • SCB (LSU Method) — ASTM D8044
  • IDEAL-CT (TTI Method) — ASTM D8225
  • IDEAL-RT (TTI Method) — ASTM WK71466
  • ISS (Interlayer Shear Strength) — AASHTO TP114

This easy-to-operate load frame allows you to easily choose your test and its parameters in the Test Setup Wizard for automated operation of the testing process and results.

At the completion of each test, the HM-5125A will display test results on its display screen per current ASTM or AASHTO specifications. This function eliminates the need for operators to download or transfer data to a computer for calculating or displaying test results. This also allows operators the ability to quickly evaluate whether a specimen mix design is within desired specifications.

If reports or test data needs to be printed or shared, data results can be transferred to a computer via an ethernet connection with a networked computer or via a USB thumb drive.

The HM-5125A‘s heavy-duty design and precise stepper-motor control provide a stable platform for years of reliable service. From educational institutions and consulting firms to high-volume commercial labs and construction projects, the HM-5125A Load Frame can perform these applications with ease.

The HM-5125A is built around Humboldt‘s integral, data logger with touch-screen control, which allows the load frame to be used as standalone devices capable of full test control and data logging. Operators can see all the data in several formats at the machine during the testing procedure.

Standalone Control
Touch-Screen Controller Provides:

  • Multi-channel data acquisition
  • Hi-res, 7", waterproof, touch-screen provides total control and real-time graphical display of tests
  • Machine/Test control and data acquisition via touch-screen
  • Calibration of channels to load cell and transducer
  • Real-time graphical chart and numerical display of tests via touch-screen display
  • Effective sampling rate of 50 readings per second
  • Stores up to 1000 tests with 3000 points per test
  • 2 USB ports. One in front for data transfer and the rear port is for powering a wireless access point.

The HM-5125A is sold as a Load Frame ONLY, refer to the Testing Setup charts on this page for needed accessories.

Click here for more information on the Automated Load Frame for Balanced Asphalt Mixes.

For more detailed information about Marshall Testing, please visit our Asphalt Marshall Testing landing page.

Specifications
Load Capacity:11000 lbf (50kN)
Speed Range Testing:As Defined by Test
Fast Approach:3.0 in/min (75.0 mm/min)
Data Channels:Two 24 bit A/D Converters 50 Readings/Second
Platen Size / Travel:8" (203mm) / 4" (100mm)
Data Storage:1000 tests and up to 3000 readings per test
Clearance, Vertical:18" (457mm)
Clearance, Horizontal: 11" (280mm)
Voltage:110/220V 50/60Hz - 5.0amps
Shipping Weight:300 lbs (136kg)

IDEAL-CT (TTI Method) ASTM D8225

Balanced Mix load frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Linear Potentiometer 1" (50mm) HM-2305.10
Potentiometer Bracket HM-5000BR
Lottman Breaking Head, 150mm H-1369M

IDEAL-RT (TTI Method) ASTM WK71466

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Linear Potentiometer 1" (50mm) HM-2305.10
Potentiometer Bracket HM-5000BR
IDEAL-RT Test Head H-1354

ISS (Interlayer Shear) AASHTO TP114

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Linear Potentiometer 1" (50mm) HM-2305.10
Potentiometer Bracket HM-5000BR

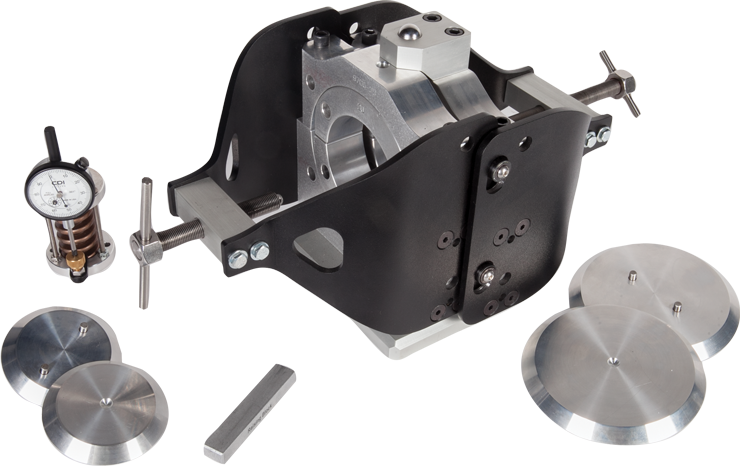

Interlayer Shear Strength Test Head
(choose one)
HA-1343
HA-1343M

SCB Testing (LSU Method) ASTM D8044

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Linear Potentiometer 1" (50mm) HM-2305.10
Potentiometer Bracket HM-5000BR
Semi-Circular Bend Test (SCB) Head H-1351

I-FIT Testing (SCB IL. Method) AASHTO TP124

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Linear Potentiometer 1" (50mm) HM-2305.10
Potentiometer Bracket HM-5000BR
Semi-Circular Bend Test (SCB) Head H-1351

TSR Testing AASHTO T283

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Lottman head, 4"
Lottman head, 6"
(choose one)
H-1349
H-1369

Marshall Testing ASTM D6927, AASHTO T245

Balanced Mix Load Frame HM-5125A.3F
Load Cell, Pancake 11,000 lbf (50kN) HM-2300.100CP
Marshall Software Module HM-5005SW
For 6" (150mm) Samples
Linear Potentiometer 1" (25mm) HM-2305.10
Potentiometer Bracket HM-5000BR
Marshall Breaking Head, 6" (150mm) H-1362
For 4" (100mm) Samples
Linear Potentiometer 2" (50mm) HM-2305.20
Displacement Platform with Knob HM-3000.10.6
Marshall Breaking Head, 4" (1000mm) H-1342
H-1342M

Accessories


Part Number & Name
Price QTY
Pancake-Type Load Cells
Linear Potentiometer Transducer
HM-5000BR
Potentiometer Bracket
$126.00
H-1354
IDEAL-RT Test Head
$900.00
Lottman Breaking Head
Lottman Breaking Head, Metric
Asphalt Tack Bond Shear Strength Apparatus
H-1351
Semi-Circular Bending (SCB) Head
$730.00
Marshall Breaking Head
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

HM-5125A0421-DataSheet (Data Sheet PDF)

HM-5125A-Manual-0521 (Product Manual PDF)

Standards

Standards

ASTM D6927

ASTM D8225

ASTM D8044

Ideal-CT (TTI Method)

ASTM D5581

ASTM D6931

AASHTO TP124 (IL Method)

AASHTO T245

AASHTO T283

BS 598

EN12697-34
