Press-Ur-Meter Concrete Air Meter

Press-Ur-Meter Concrete Air Meter

Product Options

  Part Number & Name Price QTY
Press-Ur-Meter with Wooden CaseH-2786
Press-Ur-Meter with Wooden Case
$730.00
Press-Ur-Meter with Plastic CaseH-2786P
Press-Ur-Meter with Plastic Case
$730.00
Add to Cart

Press-Ur-Meter Concrete Air Meter

Supports the following standards: ASTM C231, AASHTO T152

This is the original Press-Ur-Meter for field and laboratory tests. This air meter is designed to provide air content and the determination of specific gravity and free moisture of aggregate. Designed to save time, reduce water use, ensure accuracy and maintain sample integrity (sample may also be used for slump and compression tests). The meter uses brass cover clamps, which can be adjusted for clamping pressure. A large, easy-to-read, 4" diameter, direct percentage gauge with calibration adjustments is accurate to nearest 0.1%.The H-2786 meter also features the Humboldt, all-brass super pump, the most reliable and highest quality pump available. The meter's base/bucket can be used as a 0.25 cu. ft. unit weight measure. The kit includes a wood or molded-plastic carrying case; tamping rod; strike-off bar; rubber bulb syringe; aluminum calibration vessel; inside calibration tube, outside calibration tube and operating instructions.

Accessories

  Part Number & Name Price QTY
Concrete Air Meter Calibrator (5%), Aluminum H-2793
Concrete Air Meter Calibrator (5%), Aluminum
$60.00
Concrete Air Meter Calibrator (5%), Brass H-2789
Concrete Air Meter Calibrator (5%), Brass
$112.00
Concrete Air Meter Calibrator (5%), Plastic H-2788
Concrete Air Meter Calibrator (5%), Plastic
$57.75
Scoop, One-piece Aluminum H-3731
Scoop, One-piece Aluminum
$21.60
Plastic Case, Horizontal, Press-Ur-Meter H-2785.38HP
Plastic Case, Horizontal, Press-Ur-Meter
$98.30
Add to Cart

Replacement Parts

Replacement Part Diagram
  Part Number & Name Price QTY
Plastic Case, Horizontal, Press-Ur-Meter H-2785.38HP
Plastic Case, Horizontal, Press-Ur-Meter
$98.30
Wooden Case, Press-Ur-Meter H-2785.38
Wooden Case, Press-Ur-Meter
$76.00
Pressure Chamber for Concrete Air Meters H-2785.1
Pressure Chamber for Concrete Air Meters
$51.00
Pressure Chamber Cap H-2785.2
Pressure Chamber Cap
$64.50
Pressure Chamber Elbow H-2785.3
Pressure Chamber Elbow
$8.00
Pressure Chamber Gasket for Air Meters H-2785.4
Pressure Chamber Gasket for Air Meters
$3.70
Air-Release Stem H-2785.5
Air-Release Stem
$2.60
Air-Release Cap H-2785.6
Air-Release Cap
$3.00
H-2785.6A
Release Cap Gasket
$1.90
Air Meter Gauge H-2785.7
Air Meter Gauge
$94.50
Needle Valve Stem H-2785.11
Needle Valve Stem
$36.20
Needle Valve Nut H-2785.12
Needle Valve Nut
$1.00

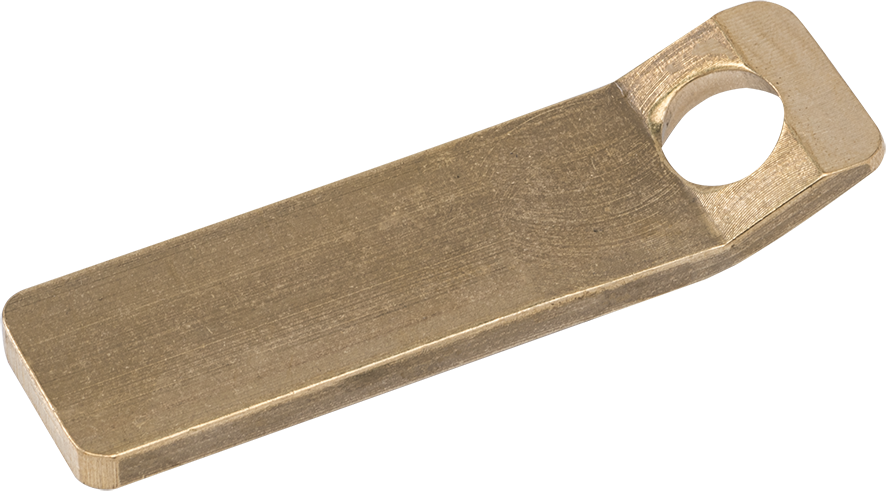

Needle Valve Lever H-2785.13
Needle Valve Lever
$9.00
Needle Valve Spacer H-2785.14
Needle Valve Spacer
$6.00
Needle Valve O-Ring H-2785.15
Needle Valve O-Ring
$1.40
Needle Valve Spring H-2785.16
Needle Valve Spring
$3.70
Needle Valve Nut H-2785.12
Needle Valve Nut
$1.00
Needle Valve Seat Assembly H-2785.18
Needle Valve Seat Assembly
$15.00
H-2785.19
Cover
$180.00
Cover O-Ring H-2785.20
Cover O-Ring
$10.00
Cover Petcock H-2783.24
Cover Petcock
$12.00
Clamp with Stud H-2785.22
Clamp with Stud
$30.00
Clamp Nut H-2785.23
Clamp Nut
$0.90
Clamp Trunion H-2785.24
Clamp Trunion
$20.00
Clamp Spring H-2785.25
Clamp Spring
$1.40
Clamp Toggle H-2785.26
Clamp Toggle
$31.00
Clamp Toggle Set Screw H-2785.27
Clamp Toggle Set Screw
$1.15
Clamp Toggle Lock Nut H-2785.28
Clamp Toggle Lock Nut
$0.80
Base H-2785.29
Base
$210.00
Needle Valve Seat Gasket H-2785.41
Needle Valve Seat Gasket
$1.40
Stud H-2785.42
Stud
$6.30

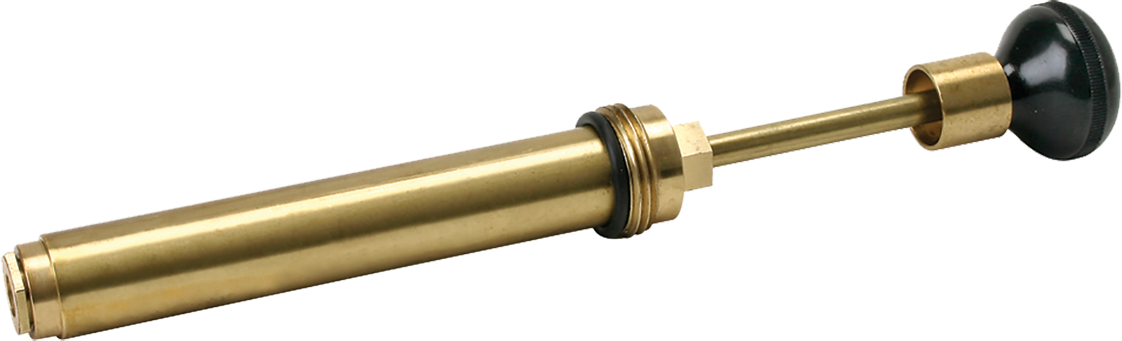

Super Pump for Air Meters H-2785.DB
Super Pump for Air Meters
$52.00
Gasket Replacement Kit H-2785.55
Gasket Replacement Kit
$18.00
H-2785.40
Latch Assembly Complete
$96.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-2786 man 0909 (Product Manual PDF)

Standards

Standards
ASTM C231
AASHTO T152
