Marshall Compactor, Single, 4", Automatic with Stationary Base

Marshall Compactor, Single, 4", Automatic with Stationary Base

Product Options

  Part Number & Name Price QTY
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 120V 60HzH-1336AD
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 120V 60Hz
$2,480.00
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 220V 60HzH-1336AD.2F
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 220V 60Hz
$2,680.00
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 220V 50/60HzH-1336AD.5F
Marshall Compactor AD, Single, 4", Automatic with Stationary Base, 220V 50/60Hz
$2,680.00
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 120V 60HzH-1336BD
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 120V 60Hz
$2,480.00
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 220V 60HzH-1336BD.2F
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 220V 60Hz
$2,680.00
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 220V 50HzH-1336BD.5F
Marshall Compactor BD, Single, 4", Automatic with Stationary Base, 220V 50Hz
$2,680.00
Add to Cart

Marshall Compactor, Single, 4", Automatic with Stationary Base

Supports the following standards:

This compactor automatically compacts samples at a preset number of hammer blows and shuts off at completion. The AD model complies with ASTM D6926-16 and provides a speed of 64 blows per minute.

The BD model provides a speed of 55 blows per minute.

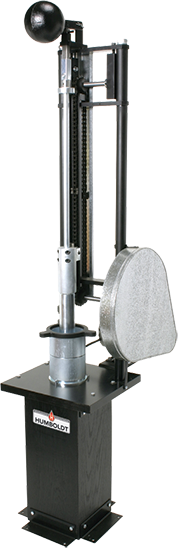

The compactor features a stationary base with flat-foot hammer. Unit includes mechanical compactor, automatic counter, ASTM-compliant oak compaction pedestal, (1) hammer and (1) H-1341A mold assembly. Additional mold and hammer assemblies are recommended for efficient testing operations, allowing you to preheat multiple molds and hammers to speed testing.

Accessories

  Part Number & Name Price QTY
Paper Disks Paper DisksClick for Options
Mold Extractor, 4" H-1348
Mold Extractor, 4"
$69.00
Marshall Mix Design and Testing Booklet H-1328A
Marshall Mix Design and Testing Booklet
$25.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-1336 46 56D man 0609 (Product Manual PDF)

Standards

Standards
AASHTO T245
PTM705
