Cleveland Flash and Fire Point Tester

Cleveland Flash and Fire Point Tester

Product Options

  Part Number & Name Price QTY
Cleveland Flash Tester, 115V 60HzH-2085
Cleveland Flash Tester, 115V 60Hz
$1,210.00
Cleveland Flash Tester, 220V 50/60HzH-2085.4F
Cleveland Flash Tester, 220V 50/60Hz
$1,274.00
Add to Cart

Cleveland Flash and Fire Point Tester

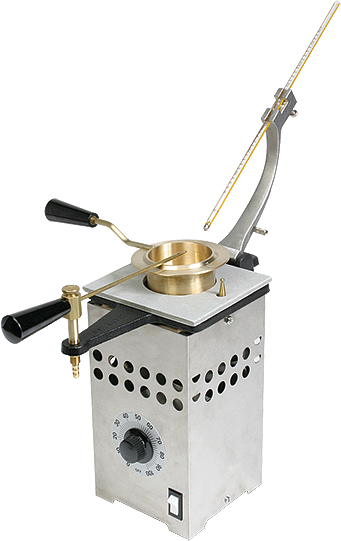

Used to determine flash and fire points by the cleveland open-cup method. Consists of electric Heater with rheostat, flash point platform with Thermometer holder, test burner and flash cup. Utilizes a 1250W-10 amp, nickel-chromium heater with stepless variable control for accurate, repeatable, rate-of-rise temperature settings per specifications. Heater is enclosed in a stainless steel housing with cooling vents.

Thermometer position is adjustable and provides the ability to raise the thermometer out of the way to facilitate the placement and removal of the test cup. Test flame requires a gas supply and the test flame can be adjusted through the use of the built-in needle valve.

Order necessary mercury thermometer locally. Illinois law prohibits us from selling mercury thermometers.

The Cleveland Flash and Fire Point Tester supports the following standards: ASTM D92ASTM D117, AASHTO T48

Replacement Parts

  Part Number & Name Price QTY
Electric Heater with Rheostat (1250W) H-2085.1
Electric Heater with Rheostat (1250W)
$819.00
Flash-Point Platform H-2085P
Flash-Point Platform
$360.00
Test burner w/ holder H-2112
Test burner w/ holder
$52.00
Flash Cup for Cleveland Flash Tester H-2060
Flash Cup for Cleveland Flash Tester
$110.00
Supra-Board Plate for Cleveland Flash Point Tester H-2095.4.2
Supra-Board Plate for Cleveland Flash Point Tester
$33.10
ASTM Thermometers, Mercury, Fahrenheit ASTM Thermometers, Mercury, FahrenheitClick for Options
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-2085 man 0811 (Product Manual PDF)

Standards

Standards
ASTM D92
ASTM D117
AASHTO T48
