Concrete Air Meter

Concrete Air Meter

Product Options

  Part Number & Name Price QTY
Concrete Air MeterH-2786C
Concrete Air Meter
$672.00
Add to Cart

Concrete Air Meter

The H-2786C air meter features a simplified, low-maintenance design, which uses no moving parts inside the chamber. Pressure is released into the base by an external, brass, quick-release T-valve. The meter uses brass cover clamps, which can be adjusted for clamping pressure. A large, easy-to-read, 4" diameter, direct percentage gauge with calibration adjustments is accurate to the nearest 0.1%. The base is machined inside and out for easy cleaning and the chamber and cover are one solid component, eliminating bottom gasket leaks. The H-2786C air meter also features the Humboldt, all-brass super pump, the most reliable and highest quality pump available. The meter's base/bucket can be used as a 0.25 cu. ft. unit weight measure. The kit includes a durable plastic carrying case; tamping rod; strike-off bar; wash bottle; plastic calibration vessel; inside calibration tube, outside calibration tube and operating instructions.

The Concrete Air Meter supports the following standards: ASTM C231, AASHTO T152

Accessories

  Part Number & Name Price QTY
Concrete Air Meter Calibrator (5%), Aluminum H-2793
Concrete Air Meter Calibrator (5%), Aluminum
$60.00
Concrete Air Meter Calibrator (5%), Brass H-2789
Concrete Air Meter Calibrator (5%), Brass
$112.00
Concrete Air Meter Calibrator (5%), Plastic H-2788
Concrete Air Meter Calibrator (5%), Plastic
$57.75
Scoop, One-piece Aluminum H-3731
Scoop, One-piece Aluminum
$19.60
Add to Cart

Replacement Parts

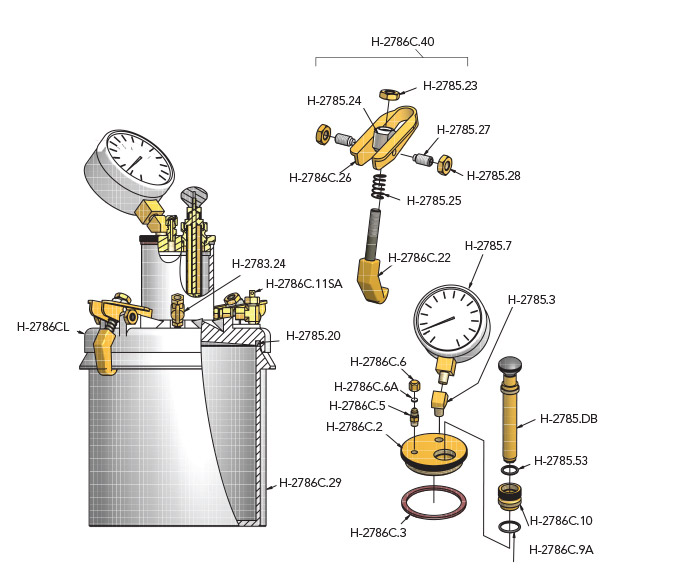

Replacement Part Diagram
  Part Number & Name Price QTY
Plastic Case, Horizontal for Air Meters H-2783.62H
Plastic Case, Horizontal for Air Meters
$103.00
Latch for Plastic Air Meter Case H-2783.60L
Latch for Plastic Air Meter Case
$4.20
Air Meter Gauge H-2785.7
Air Meter Gauge
$94.50
Pressure Chamber Elbow H-2785.3
Pressure Chamber Elbow
$8.00
Pressure Chamber Gasket H-2786C.3
Pressure Chamber Gasket
$6.95
Pressure Chamber Cap H-2786C.2
Pressure Chamber Cap
$165.00
Air-Release Stem H-2786C.5
Air-Release Stem
$10.00
Base H-2786C.29
Base
$298.00
Air-Release Cap H-2786C.6
Air-Release Cap
$8.00
Release Cap Gasket H-2786C.6A
Release Cap Gasket
$3.10
Vale Assembly Complete H-2786C.11SA
Vale Assembly Complete
$29.00
Cover O-Ring H-2785.20
Cover O-Ring
$10.00
Clamp Trunion H-2785.24
Clamp Trunion
$20.00
Clamp Nut H-2785.23
Clamp Nut
$0.90
Clamp Toggle Set Screw H-2785.27
Clamp Toggle Set Screw
$1.15
Clamp Spring H-2785.25
Clamp Spring
$1.40
Clamp Toggle H-2786C.26
Clamp Toggle
$18.00
Super Pump Adapter H-2786C.10
Super Pump Adapter
$30.00
Lower O-Ring for Adapter H-2786C.9A
Lower O-Ring for Adapter
$2.00
Pump Tube O-Ring H-2785.53
Pump Tube O-Ring
$1.25
Base H-2786C.29
Base
$298.00
Cover H-2786CL
Cover
$260.00
Super Pump for Air Meters H-2785.DB
Super Pump for Air Meters
$52.00
Gasket Replacement Kit H-2786C.55
Gasket Replacement Kit
$18.00
Latch Assembly Complete H-2786C.40
Latch Assembly Complete
$96.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-2786C man Air Meter (Product Manual PDF)

Standards

Standards
ASTM C231
AASHTO T152
