Guardian 5000, Ceramic, Hotplate/Stirrers

Guardian 5000, Ceramic, Hotplate/Stirrers New

Product Options

  Part Number & Name Price QTY

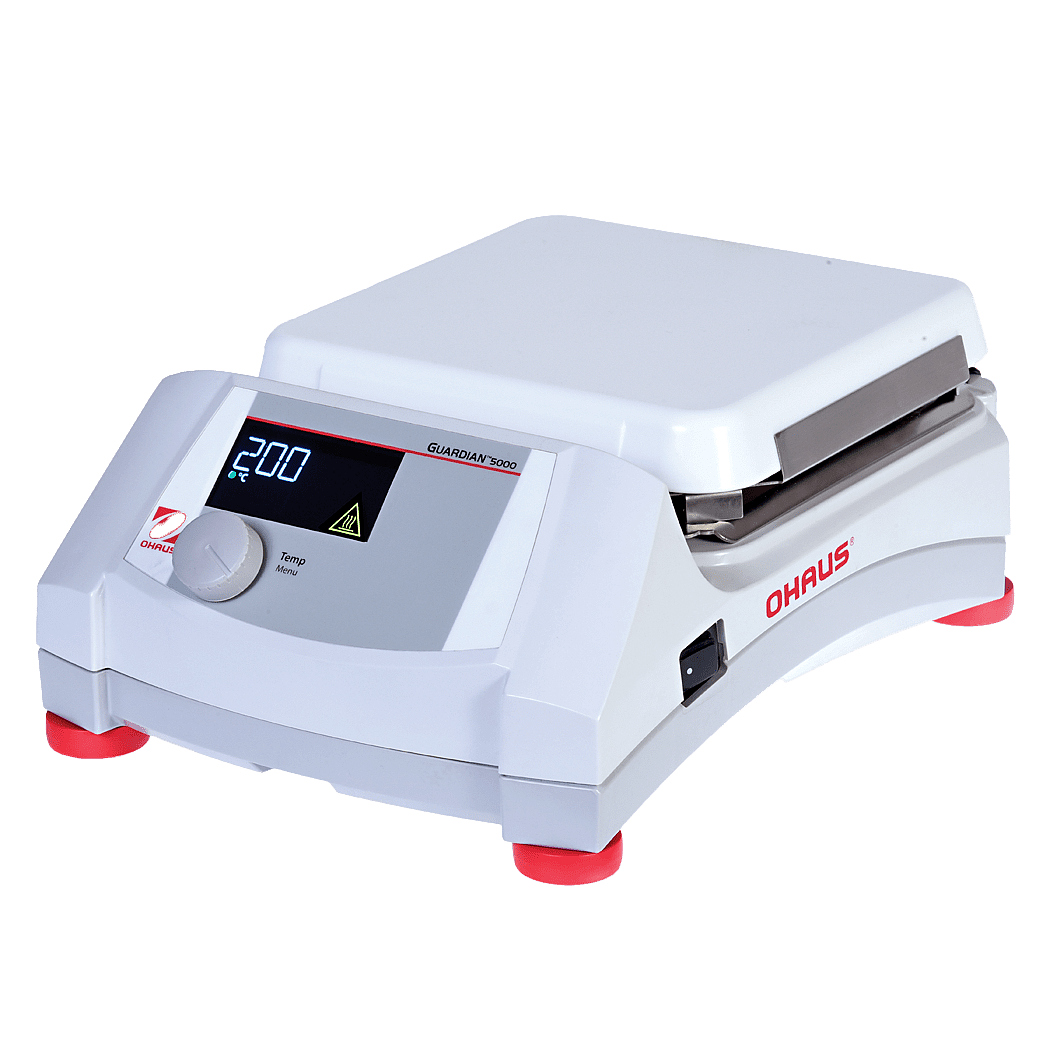

Guardian 5000, 7"x7" Ceramic, Hotplate/Stirrer, 120V 50/60HzH-7531
Guardian 5000, 7"x7" Ceramic, Hotplate/Stirrer, 120V 50/60Hz
$500.00
Guardian 5000 7"x7" Ceramic, Hotplate/Stirrer, 230V 50/60Hz.H-7531.4F
Guardian 5000 7"x7" Ceramic, Hotplate/Stirrer, 230V 50/60Hz.
$500.00

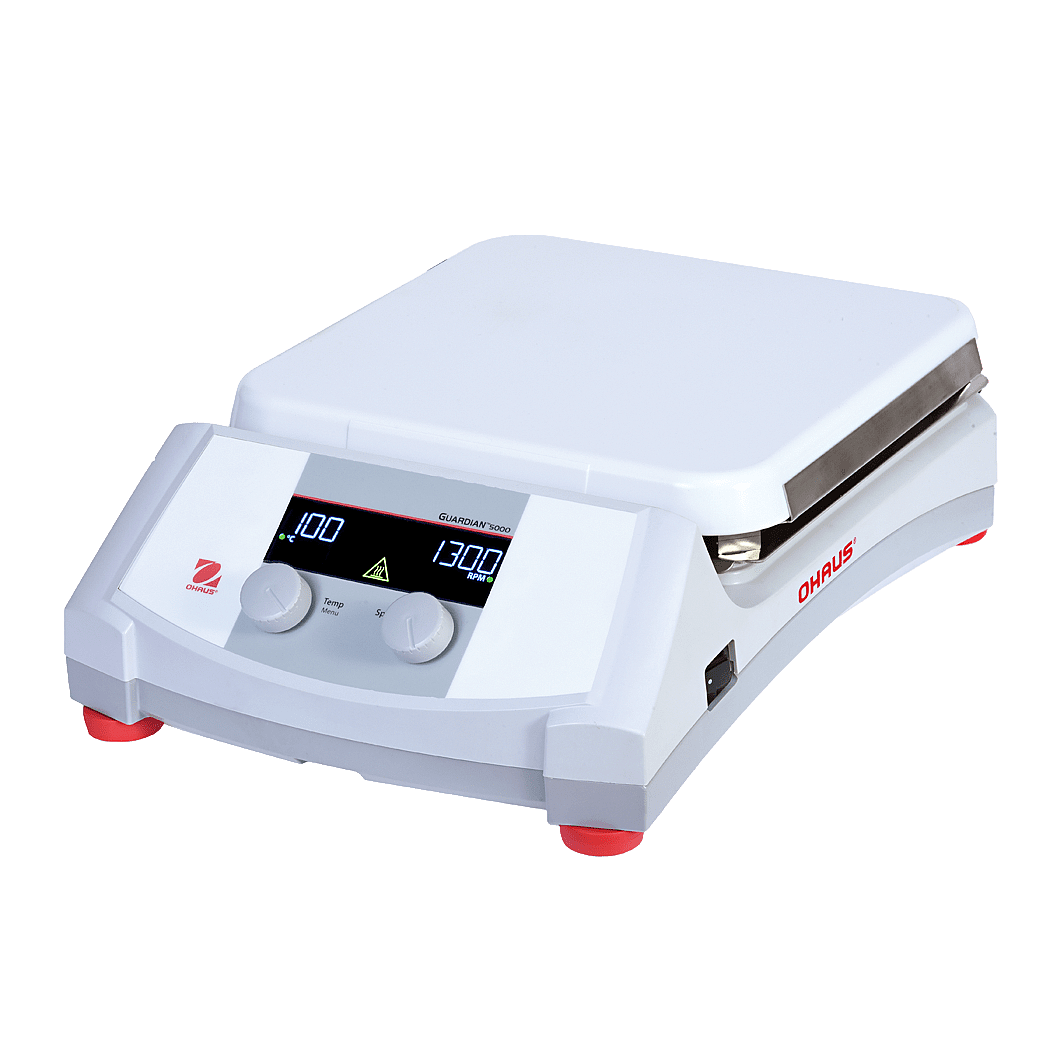

Guardian 5000 10"x10" Ceramic, Hotplate/Stirrer, 120V 50/60Hz.H-7532
Guardian 5000 10"x10" Ceramic, Hotplate/Stirrer, 120V 50/60Hz.
$650.00
Guardian 5000 10"x10" Ceramic, Hotplate/Stirrer, 230V 50/60Hz.H-7532.4F
Guardian 5000 10"x10" Ceramic, Hotplate/Stirrer, 230V 50/60Hz.
$650.00
Add to Cart

Guardian 5000, Ceramic, Hotplate/Stirrers

OHAUS Guardian 5000™ Hotplates Stirrers are designed for safety and simplicity in all research, academia and industrial applications. The design ensures proper mixing and temperature control of the top plate or your sample when using the optional temperature probe. Heating models include a Single Point Calibration feature for multiple set points. Select from two stirring models with two plate sizes for your everyday heating and stirring applications.

Unique Features:

  • SafetyHeat™ System Protects the Lab— An industry-leading early detection system that uses two independent safety controls to continuously monitor the electronics and shut off heating before an over-temperature condition occurs.
  • Powerful, Consistent Stirring Performance— Precise stirring from 60 to 1600 rpm is made possible by the design of a powerful motor, strong magnet and software-controlled ramp rate, ensuring secure magnetic coupling for viscous applications.
  • Easy to Read LCD Display With Everything You Need to Know— The bright LCD display includes large temperature and speed settings, intuitive icons and a prominent hot top indicator - all designed to quickly and easily monitor performance from across the lab.
  • Designed for Durability and Reliability with the Exclusive SmartHousing™— The SmartHousing™ is chemical resistant with an innovative, easy-to-clean design that

channels spills away from internal components and the angled control panel.

Specifications
Overall Dimensions:30.7 x 22.4 x 12.2cm (12.1" x 8.8" x 4.8")
Top plate dimensions / Material:17.8 x 17.8cm (7" x 7") Ceramic 25.4 x 25.4cm (10" x 10") Ceramic
Electrical (50/60 Hz):120 volts ±10%: 10.0 amps 230 volts ±10%: 6.0 amps
Fuses:10A time-delay, 5x20mm, 250VAC
Temperature range:Ambient +5° to 500°C
Temperature stability of top plate:± 3% > 100°C, ± 2% ≤ 100°C
Temperature stability with temperature probe:± 1% > 100°C, ± 1°C ≤ 100°C
Stir capacity:15L
Speed range:60 to 1600rpm
Speed stability:±2%
Weight capacity:Up to 14.5kg (32 lbs)

Accessories

  Part Number & Name Price QTY
H-7530.1
In Use Cover Guardian 7x7
$45.00
H-7532.1
In Use Cover Guardian 10x10
$45.00
H-7530.2
Temperature Probe 20cm Stainless for Ohaus Guardian Hotplate
$195.00
H-7530.3
Temperature Probe 25cm Stainless for Ohaus Guardian Hotplate
$250.00
H-7530.4
Stir Bar Retriever
$40.00
H-7530.5
Support Rod And Clamp Kit
Call
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
Guardian5000DatasheetUS (Data Sheet PDF)
Guardian5000manual (Product Manual PDF)
