Tag, Open-Cup Flash Tester

Tag, Open-Cup Flash Tester

Product Options

  Part Number & Name Price QTY
Tag, Open-Cup Tester, 120V 60HzH-1990A
Tag, Open-Cup Tester, 120V 60Hz
$3,461.00
Tag, Open-Cup Tester, 230V 50/60HzH-1990A.4F
Tag, Open-Cup Tester, 230V 50/60Hz
Call
Add to Cart

Tag, Open-Cup Flash Tester

Supports the following standards: ASTM D1310, ASTM D3143, AASHTO T79

For determination flash and fire points of liquids at temperatures of up to 325°F (163 °C) and flash points of cutback asphalts at temperatures of less than 200°F (93 °C) as per test methods ASTM D1310, D3143 and related test specifications.

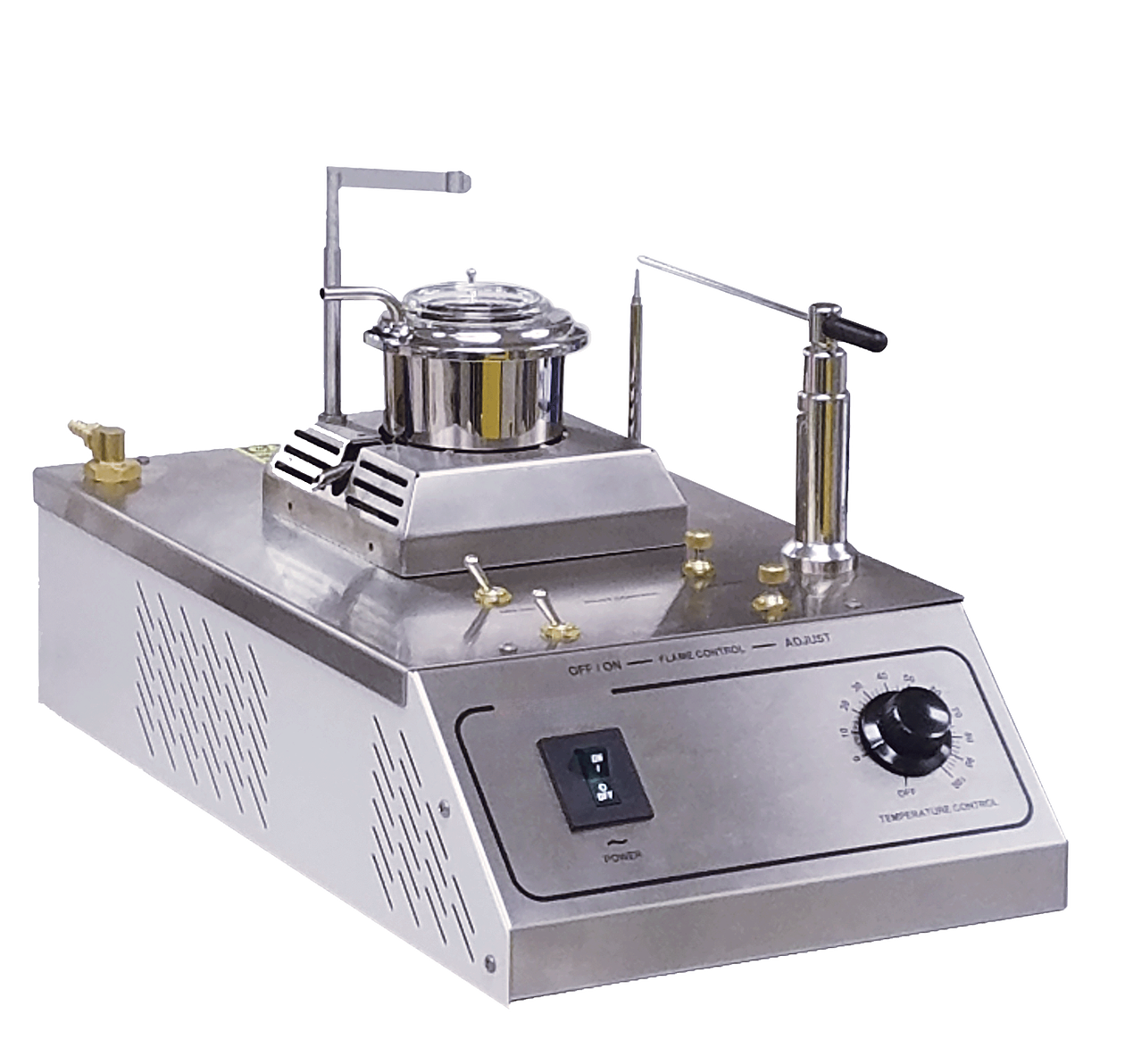

Determines Tag Open-Cup flash point of liquid products and cutback asphalts. Includes sample test cup, plated brass liquid bath with constant level overflow, pivoting ignition taper with pilot light and reference bead, pivoting thermometer holder, heater and base.

Electrically heated model is equipped with stepless variable heat control for accurate control of temperature rate of rise per specification. Gas heated model also available.

Includes Tag Open Cup Flash Point Tester, borosilicate glass sample cup, liquid bath with constant level overflow and manual.

Order leveling device and draft shield separately.
Order necessary ASTM 9C mercury thermometer.

Accessories

  Part Number & Name Price QTY
H-1990.2
Leveling device
$183.00
H-1990.3
Draft shield
$627.00
ASTM Thermometers, Mercury, Fahrenheit ASTM Thermometers, Mercury, FahrenheitClick for Options
ASTM Thermometers, Mercury, Celsius ASTM Thermometers, Mercury, CelsiusClick for Options
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
H-1990.1
Replacement Pyrex cup
$117.00
Add to Cart

Standards

Standards
ASTM D1310
ASTM D3143
AASHTO T79
