What Is a Proctor Compaction Test? Understanding Soil Density with Humboldt Equipment
- May 8th, 2025
- Category: Soil & Aggregate Moisture Testing

In the world of geotechnical engineering and construction, the stability and longevity of a structure often begin below the ground, with the soil. One essential process in assessing soil suitability is the Proctor Compaction Test, a laboratory method that determines the optimal moisture content at which soil achieves its maximum dry density. A Proctor test (also known as the Proctor Compaction Test) is a laboratory method used to determine the maximum dry density and optimum moisture content at which a soil type can be compacted using a standardized mechanical effort.
A Legacy in Soil Testing: The Origin of the Proctor Test
The original Proctor test was introduced in 1933 by engineer Ralph Roscoe Proctor. It set the standard for evaluating how soil behaves under compaction—a process crucial for foundations, roadbeds, embankments, and other load-bearing projects. Since then, the procedure has evolved into two primary methods:
- Standard Proctor Test (ASTM D698)
- Modified Proctor Test (ASTM D1557)
The difference lies in the compaction energy applied: the modified test uses a heavier hammer and higher drop height to simulate more rigorous field conditions.
Purpose of the Proctor Test:
- To understand how a specific soil responds to compaction.
- To ensure that soils used in construction (like roadbeds, embankments, or foundations) achieve the required density and strength for stability and long-term performance.
How the Proctor Test Works

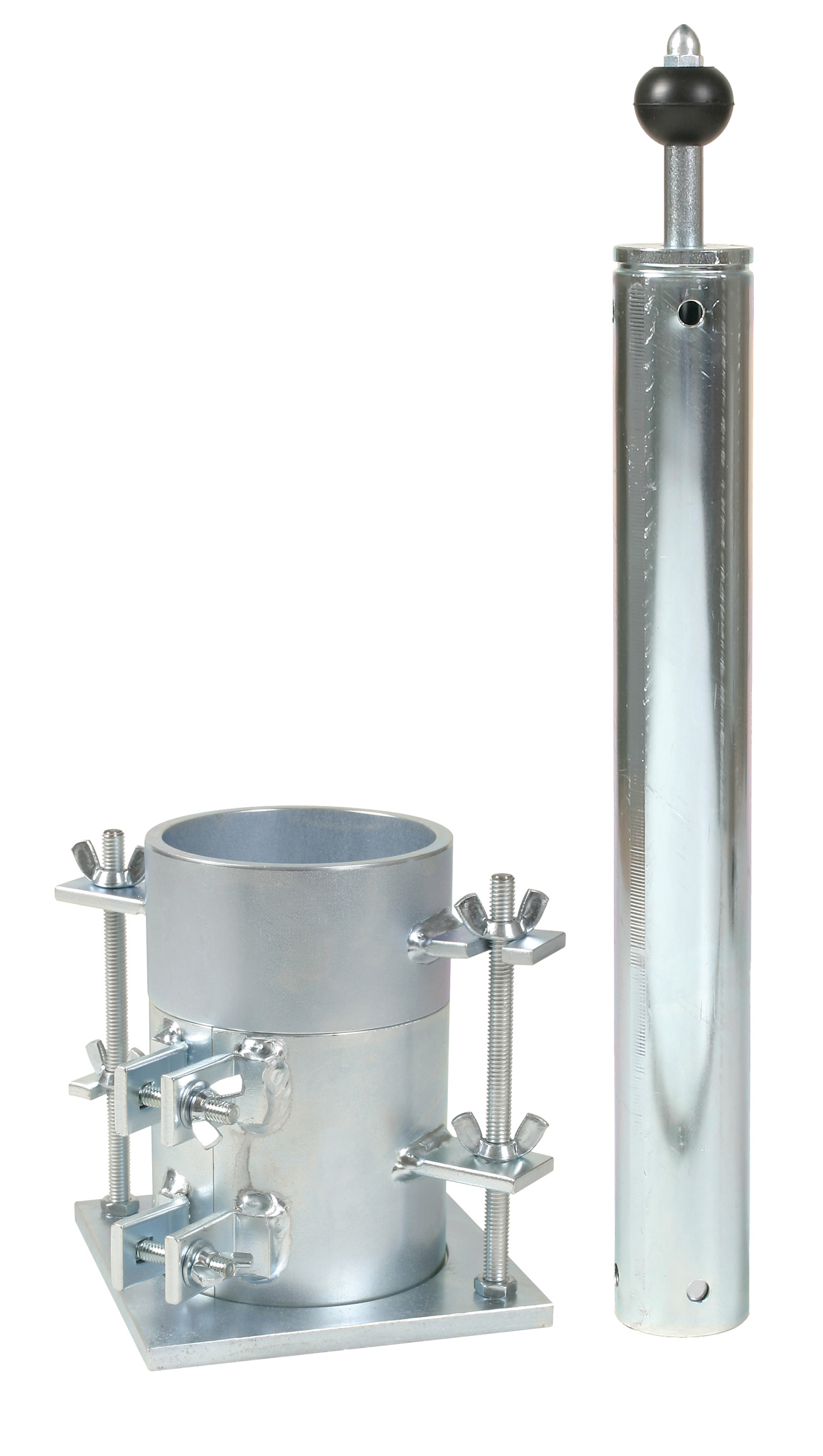

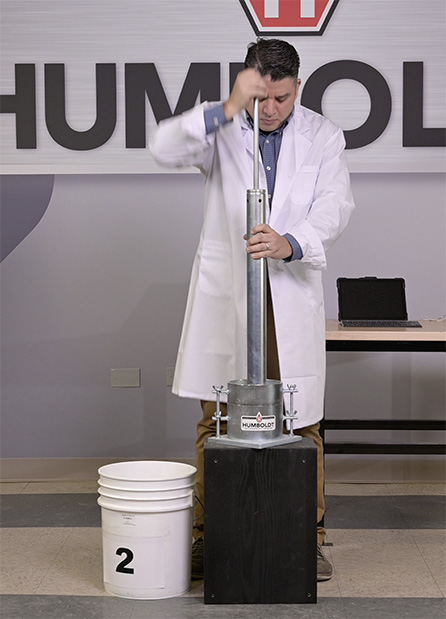

The Proctor Compaction Test involves placing soil of known moisture content into a cylindrical mold and compacting it in layers using a standardized hammer. The hammer is dropped from a fixed height to deliver consistent energy to each layer of soil. This process is repeated at various moisture levels to generate a compaction curve, which plots dry density vs. moisture content.
- Soil Sample Preparation: The soil is air-dried, sieved, and divided into samples with varying moisture content.
- Compaction: Each sample is compacted in a mold using a standardized hammer (with either standard or modified energy levels).
- Measurement: After compaction, the dry unit weight (dry density) of each sample is calculated.
- Curve Plotting: The dry density is plotted against moisture content to create a compaction curve.
- Determination: The peak of the curve gives the maximum dry density, and the corresponding moisture content is the optimum moisture content.
The Peak of This Curve Indicates:
- The maximum dry density of the soil
- The optimum moisture content (OMC) for achieving that density
These values help engineers ensure that field compaction efforts meet design specifications, preventing future issues such as settlement, instability, or structural failure.
Humboldt is proud to support soil testing professionals with a complete line of Proctor Test Equipment, including:

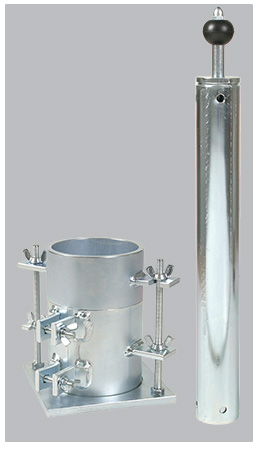

- Proctor Molds & Collars – Precision-machined molds for both standard and modified tests
- Manual & Mechanical Soil Compactors – Ensuring consistent, repeatable hammer blows
- Moisture Content Equipment – Ovens, balances, and moisture testers for accurate data
- Soil Sample Preparation Tools – Sieve sets, splitters, and mixing equipment to prepare uniform samples
- Compaction Curve Software – Integrated data analysis tools for real-time reporting and curve generation
All Humboldt equipment complies with ASTM D698 and AASHTO T99 standards, delivering the accuracy needed for dependable geotechnical assessments.

Why the Proctor Test Matters

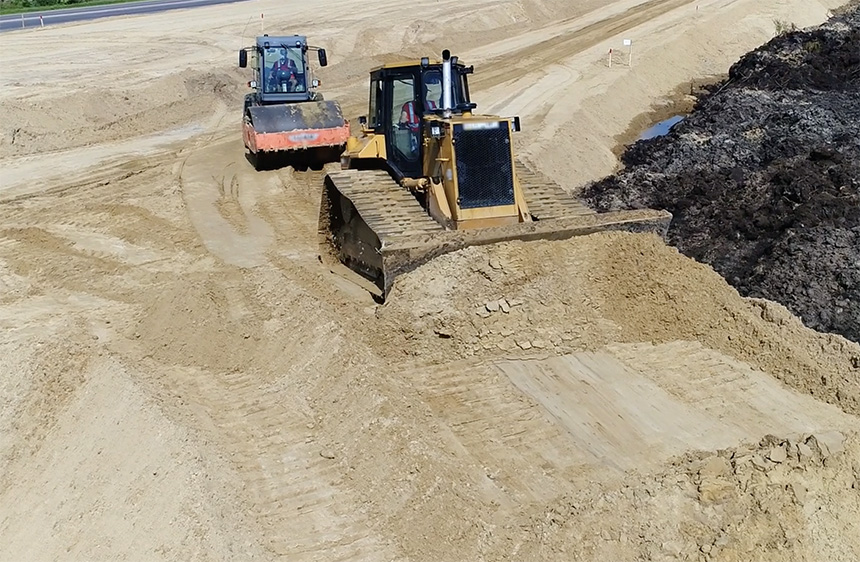

Proper soil compaction is one of the most important steps in construction. Whether you're building highways, airports, retaining walls, or residential structures, ensuring that the underlying soil can support the load is non-negotiable. The Proctor test provides the blueprint for achieving that confidence.
With Humboldt’s durable and precise testing equipment, engineers and technicians can perform compaction testing that meets industry standards and supports safe, long-lasting construction.
Applications:
- Used as a benchmark to compare field soil compaction to lab results.
- Helps determine how much water and compaction effort to use during construction.
- Essential for projects involving pavement bases, structural fill, embankments, and earth dams.
Need Help with Proctor Testing Equipment?
Contact Humboldt Mfg today to learn more about our Proctor Test Systems, accessories, and expert support. Let us help you build with confidence—from the ground up.
