Cleveland Flash and Fire Point Tester, Natural Gas

Cleveland Flash and Fire Point Tester, Natural Gas

Product Options

  Part Number & Name Price QTY
Cleveland Flash and Fire Point Tester, Natural GasH-2095
Cleveland Flash and Fire Point Tester, Natural Gas
$714.00
Add to Cart

Cleveland Flash and Fire Point Tester, Natural Gas

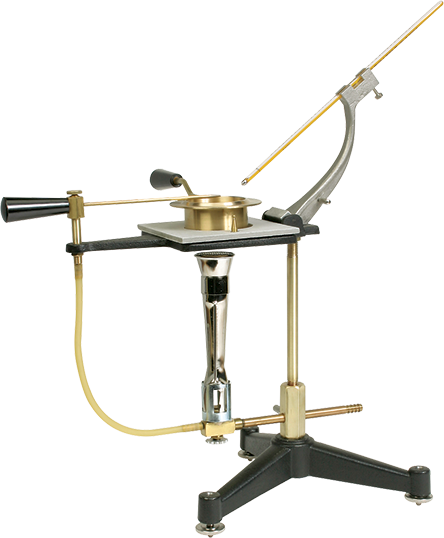

Used to determine flash and fire points by the cleveland open-cup method. Consists of a Humboldt, high-temperature burner, which is directly attached to the test support stand, for sample heating with a built-in, gas line extension for the test flame. Test flame burner and the heating burner include separate, integral, adjustment controls for regulating the flame. Includes flash point platform with thermometer holder, test burner and flash cup.

Thermometer position is adjustable and provides the ability to raise the thermometer out of the way to facilitate the placement and removal of the test cup. Flame size is adjustable through the use of the built-in needle valve.

For use with Natural Gas

Order necessary mercury thermometer locally. Illinois law prohibits us from selling mercury thermometers.

The Cleveland Flash and Fire Point Tester, Natural Gas supports the following standards: ASTM D92ASTM D117, AASHTO T48

Replacement Parts

  Part Number & Name Price QTY
Cast-Iron support base H-21335
Cast-Iron support base
$13.00
High-Temp Burner w/ Adjustable Valve Orifice H-5605X
High-Temp Burner w/ Adjustable Valve Orifice
$80.00
Test burner w/ holder H-2112
Test burner w/ holder
$52.00
Flash-Point Platform H-2095P
Flash-Point Platform
$360.00
Supra-Board Plate for Cleveland Flash Point Tester H-2095.4.2
Supra-Board Plate for Cleveland Flash Point Tester
$33.10
Flash Cup for Cleveland Flash Tester H-2060
Flash Cup for Cleveland Flash Tester
$110.00
Thumb Screw on Thermometer HolderÑ H-2095, H-2085 H-3050.7
Thumb Screw on Thermometer HolderÑ H-2095, H-2085
$3.00
Add to Cart

Literature

Manuals, Data Sheets & Safety Data Sheets
H-2095 man 0811 (Product Manual PDF)

Standards

Standards
ASTM D92
ASTM D117
AASHTO T48
