Compact Specific Gravity Bench Set

Compact Specific Gravity Bench Set

Product Options

Part Number & Name
Price QTY
Compact Specific Gravity Bench Set, 120V 60Hz
Compact Specific gravity Bench Set, 220V 50/60Hz
Add to Saved Cart

Compact Specific Gravity Bench Set

Supports the following standards: ASTM D6473, ASTM C127, ASTM D7263, ASTM D6473, AASHTO T85, AASHTO T166, AASHTO T209, AASHTO T275

The compact specific gravity bench set includes our compact bench, which measures 15.75" x 19.75" x 39" High (400 x 502 x 991mm) and includes a hole to accommodate the weigh-below scale. It includes a 10-gallon polyethylene tank with internal dimensions of 12" x 12" x 18" (305 x 305 x 457mm) The tank comes with a drain valve and overflow port. It also comes with a H-2712A.6, 200-watt, durable tank heater and circulating pump, both of which are attached to a stainless steel mounting bracket that holds both securely to the tank. The compact specific gravity bench includes two sample containers, a 7.5" dia x 7.4" tall (191 x 191mm) container and a 5.5" x 8.25" (140 x 210mm) open, wired holder.

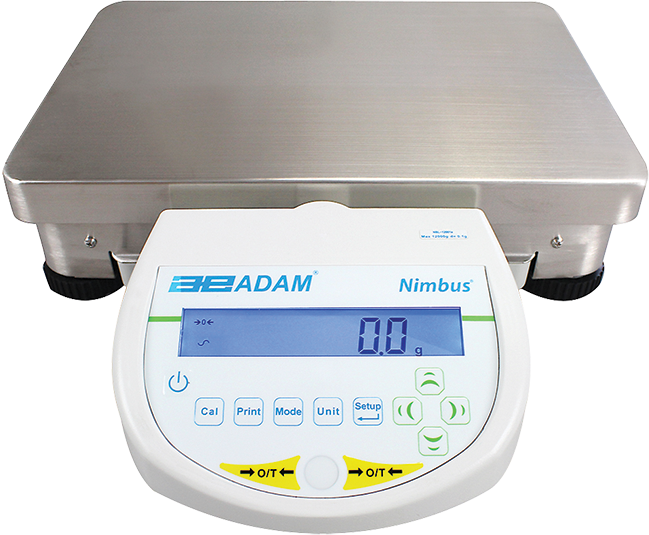

Order a weigh-below scale separately.



ASTM D6473


ASTM D7263

ASTM D6473
