Automatic 500,000lbs (2,224kN) Humboldt Compression Machine

Automatic 500,000lbs (2,224kN) Humboldt Compression Machine

Product Options


Part Number & Name
Price QTY
HCM-5000iHA
HCM-5000 Series Compression Machine, 500K (2224kN), HCM-5080 Automatic Controller, 1HP 110V 60Hz
Call
HCM-5000iHA.4F
HCM-5000 Series Compression Machine, 500K (2224kN), HCM-5080 Automatic Controller, 1HP 230V 50/60Hz
Call
HCM-5000iHAC
HCM-5000 Series Compression Machine, 500K (2224kN), HCM-5070 Automatic Console Controller, 1HP 110V 60Hz
Call
HCM-5000iHAC.4F
HCM-5000 Series Compression Machine, 500K (2224kN), HCM-5070 Automatic Console Controller, 1HP 230V 50/60Hz
Call

Automatic 500,000lbs (2,224kN) Humboldt Compression Machine

Supports the following standards: ASTM C39
  • Suitable for cylinders, cubes, beams and cores of high-strength concrete mixes
  • 5000 to 500,000 lbf (22.2 to 2224kN) testing range with accuracy of ±0.5% of indicated load
  • Suitable for concrete strength up to 14,000 psi for 6" diameter cylinders
  • Standard configuration includes platens to test 6" x 12" (150mm X 300mm) cylinders.
  • Choice of 2 digital controllers and 2 digital indicators
  • Large frame opening to allow easier loading of test specimens
  • Mounting stand is INCLUDED
  • Optional test platens and accessories available


Specifications

  • Vertical Opening - 18.375" (467mm)
  • Horizontal Opening - 14" (356mm)
  • Piston Stroke - 2.5" (63.5mm)
  • Lower Platen - 12.5" x 18" (318 x 475mm)
  • Upper Platen, Dia. - 6.5" (165mm)
  • Oil Reservoir Cap - 2 gal (7.6 liter)
  • Overall Width - 30" (762mm)
  • Overall Depth - 23.750" (603mm)
  • Overall Height - 60.625" (1540mm)

*Frame opening dimensions are measured without test platens installed in machine. Overall machine dimensions are measured with the stand, including machines where it is optional.

Humboldt offers several excellent controllers for use with our concrete compression machines allowing you to choose the controller that best fits your application.

Automatic Controllers
Humboldt's line of controllers include the HCM-5080, an automatic controller and the HCM-5070, a console version of the HCM-5080. The HCM-5080 and HCM-5070 utilize an integral hydraulic pump, which is automatically controlled by the controller. Humboldt Controllers feature a 7" high-resolution, color, touch-screen, which provides accurate, precision machine operation. And, they both feature two channel inputs for load, which allow for the control of two separate compression frames and two additional channel inputs for displacement, which allow for extensometer and compressometer testing

Humboldt’s HCM-5080 and HCM-5070 Console Automatic Digital Controllers for concrete compression frames provide an easy-to-use automated testing work flow— just choose the test standard you wish to run and the controller will quickly guide you through the setup and run the test automatically, including releasing the pressure once failure has occurred. Choosing the "Fast Testing" option and your compression machine will run tests as fast as you can load your cylinders, cubes or blocks while sequentially numbering each test automatically.

Humboldt's HCM-5080 and HCM-5070 controllers incorporate these standard tests in their design: ASTM C39, C78, C293, C469, C496, C1019, C109/C109M and EN 12390-3. Just pick the test you want to run as you configure your test and the controller will guide you through setup from where you can proceed with your test.

Humboldt’s HCM-5090 Controller features a 7" high-resolution, color, touch-screen, which provides accurate, precision machine operation. And, feature a two channel inputs for load, which allow for the control of two separate compression frames and two additional channel inputs for displacement, which allow for extensometer and compressometer testing

For the budget-minded operation, we also offer the i7 indicator, which is an easy-to-use digital load indicator that simultaneously displays both live load and rate of load values during a test.

Accessories


Part Number & Name
Price QTY
HCM-TM0102
Limit Switch, HCM-5000 Series
$203.00
Cylinder Splitting Set
Add to Saved Cart

Replacement Parts


Part Number & Name
Price QTY

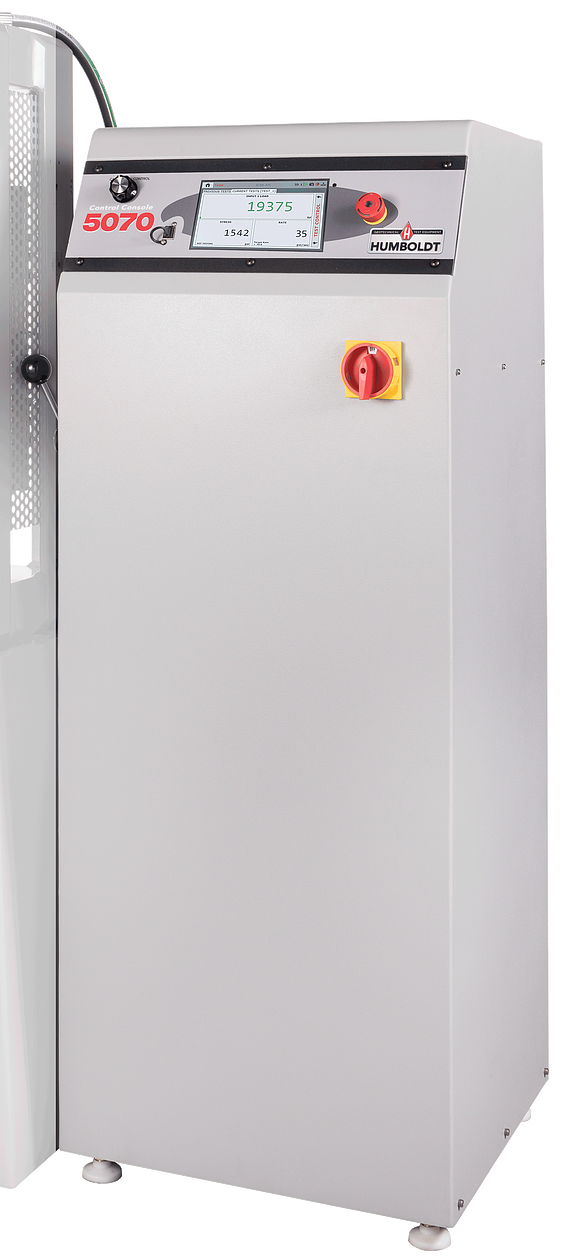

Humboldt HCM-5070 Automatic Controller
Humboldt HCM-5080 Automatic Controller
HCM-5090.3F
HCM-5090 Digital Indicator
$2,335.00
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

Concrete-Compression (Data Sheet PDF)

Standards

Standards

ASTM C39
