Saybolt Viscometer Bath

Saybolt Viscometer Bath

Product Options


Part Number & Name
Price QTY
H-2165
Saybolt Viscometer Bath, 120V 60Hz
$8,391.00
H-2165.4F
Saybolt Viscometer Bath, 220V 50/60Hz
Call
Add to Saved Cart

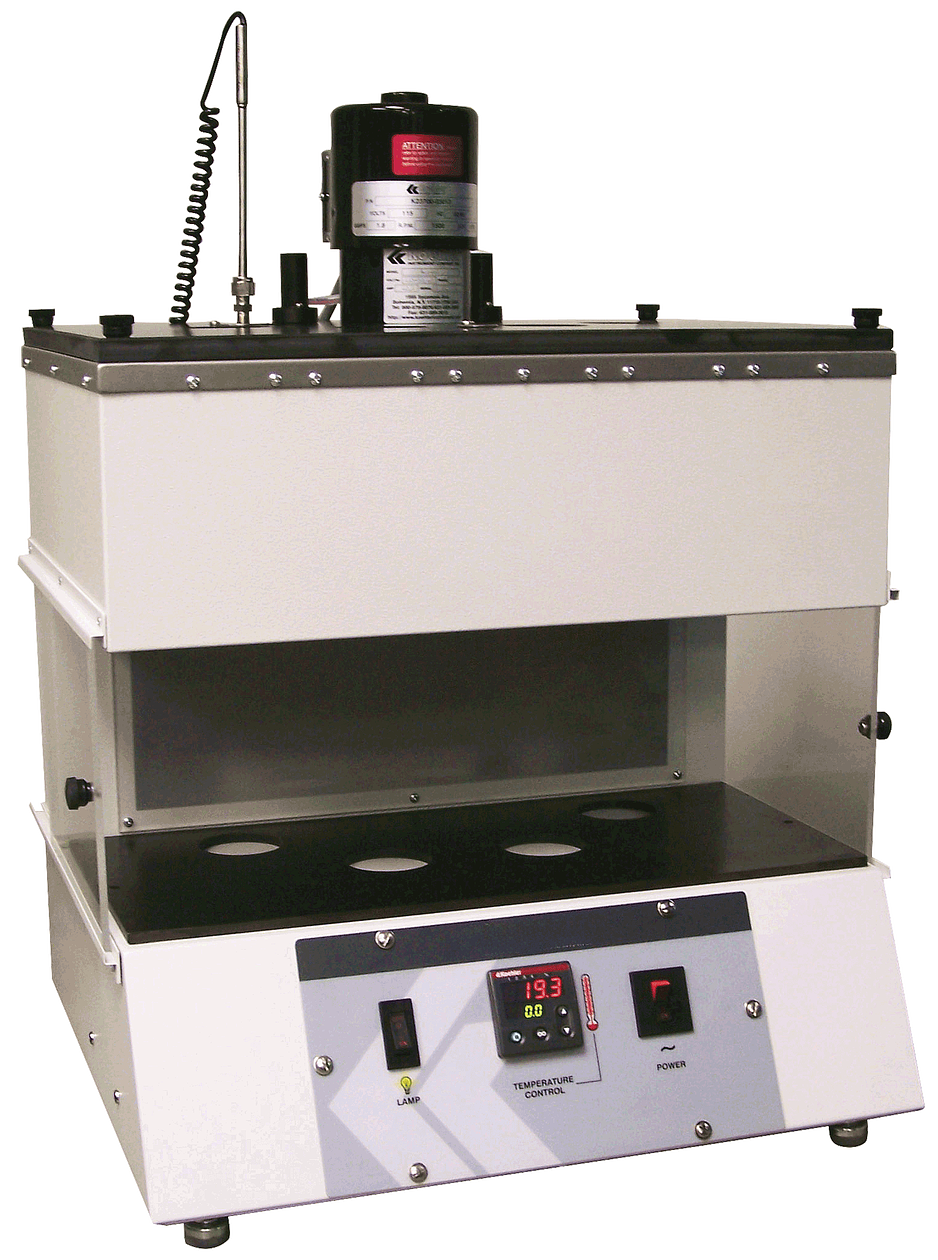

Saybolt Viscometer Bath

Supports the following standards: ASTM D244, ASTM D88, D244, E102, AASHTO T72

Designed for Saybolt universal and furol viscosity testing, this constant temperature bath meets all ASTM and AASHTO requirements for precise temperature control. The micro-processor PID circuitry assures accurate temperature control within ASTM tolerances throughout the range of ambient to 464°F (240°C). Temperature stability is ±0.05°F (±0.03°C)

Simple push-button controls and dual digital displays are used for easy setting and monitoring of the baths temperature. With a capacity of four viscometers and 60ml receiving flasks, the bath features sliding draft shields, chemical-resistant alignment plates for handling of flasks and a glare-free fluorescent backlight for easy viewing of test sample. The insulated bath interior is constructed entirely of heavy-gage stainless steel and the built-in overflow pipe and drain valve simplifies filling the bath oil to the required level. A chemical resistant top plate provides insulation and is easily removed to allow for cleaning of the bath interior.

The bath is supplied complete with four thermometer supports, four port covers, four chained corks, two port closures, tube nut wrench, orifice wrench, withdrawal tube and oil strainer.

Viscometer tubes, orifices, receiving flasks, oil and thermometers are not included and must be ordered separately.

Accessories


Part Number & Name
Price QTY
H-2175
Cleaning plunger
$145.00
H-2176
Bororsilicate glass receiving flask, 60ml (for H-2165)
$60.00
H-2179
Bororsilicate glass receiving flask, 60ml (for H-2166)
$159.00

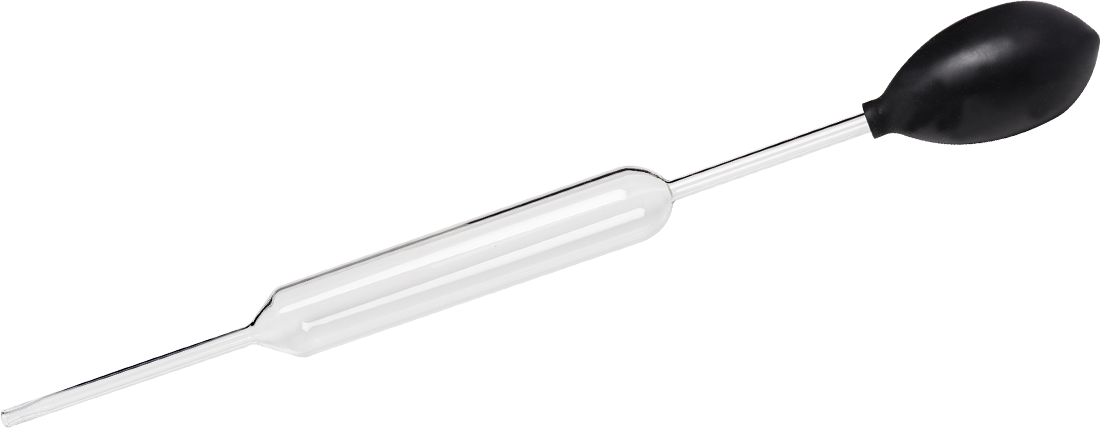

H-2177
Withdrawal tube
$84.00
H-2178
Oil strainer
$245.00
H-2189
Technical oil, white, (1 gal.) suitable for use up to 230°F (110°C)
$70.00
H-2199A
High Temperature Silicone Based Fluid (5 gal.)
Call
H-2199A
High Temperature Silicone Based Fluid (5 gal.)
Call
H-2194
Displacement ring
$187.00
H-2195
Thermometer support
$99.00
H-2196
Orifice wrench
$193.00
H-2197
Socket wrench
$163.00
Add to Saved Cart

Replacement Parts


Part Number & Name
Price QTY
H-2173
Stainless steel universal orifice only
$266.00
H-2174
Stainless steel Furol orifice only
$270.00
H-2174C
Stainless steel furol, calibrated
$476.00
H-2180
Brass Sayboldt viscometer tube w/ stainless steel universal orifice
$713.00
H-2182
Brass saybolt viscometer tube w/stainless steel furol orifice
$650.00
H-2183
Stainless saybolt viscometer Tube w/stainless steel furol orifice
$1,200.00

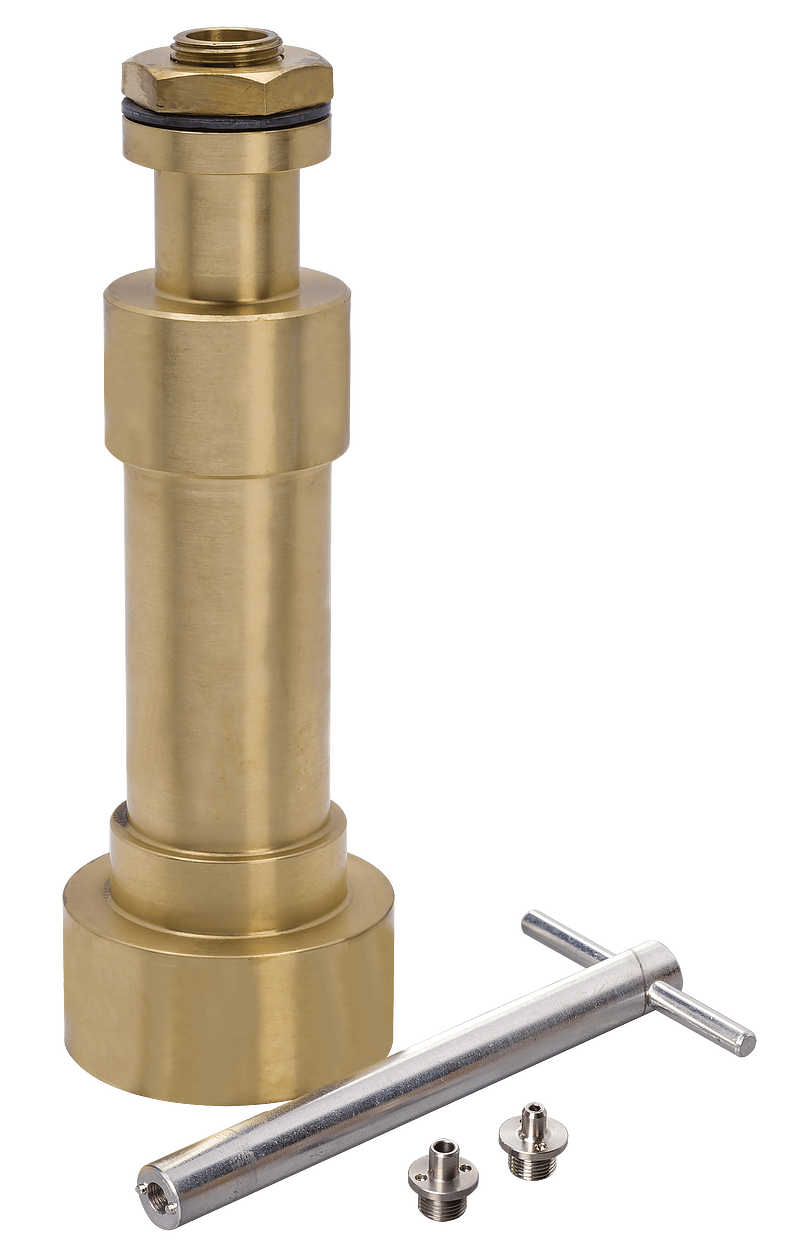

H-2184
Brass saybolt viscometer tube w/stainless steel universal and furol orifice, includes wrench
$1,000.00
H-2185
Stainless saybolt viscometer tube w/ universal and furol orifice, includes wrench
$1,575.00

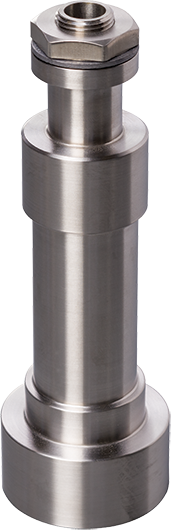

H-2171
Sayboldt viscometer tube, Stainless steel
$1,089.00
H-2172
Sayboldt viscometer tube, Brass
$447.00
Add to Saved Cart

Literature

Manuals, Data Sheets & Safety Data Sheets

H-2165-man (Product Manual PDF)

Standards

Standards

ASTM D244

ASTM D88

D244

E102

AASHTO T72
