- Suitable for cylinders, cubes, beams, and cores of standard strength concrete mixes
- 3000 to 325,000 lbf (13.3 to 1445kN) testing range with accuracy of ±0.5% of indicated load
- Suitable for concrete strength up to 9,000 psi for 6" diameter cylinders
- Standard configuration includes platens to test 6" x 12" (150mm x 300mm) cylinders.
- Optional test platens and accessories available
- Mounting stand is NOT included. Sold Separately: HCM-0300
- HCM-5090 Digital Indicator and Hydraulic Pump
- Two-channel inputs for load, which allows for the control of two separate compression frames
- Provides two additional channel inputs for displacement, which allows performing extensometer and compressometer testing
- 7", high-resolution color touch-screen display with live readout, graphical and tabular display
- Easy test setup, just choose the standard you wish to test for, and the controller will walk you through the complete setup
- Vertical Opening - 19.94" (506mm)
- Horizontal Opening - 9.5" (241mm)
- Piston Stroke - 3" (76mm)
- Lower Platen - 6.5" x 1" (165 x 25.4mm)
- Upper Platen, Dia. - 6.5" (165mm)
- Oil Reservoir Cap. - 2 gal (7.6 liter)
- Overall Width - 31.5" (800mm)
- Overall Depth - 17" (432mm)
- Overall Height - 58.5" (1486mm)

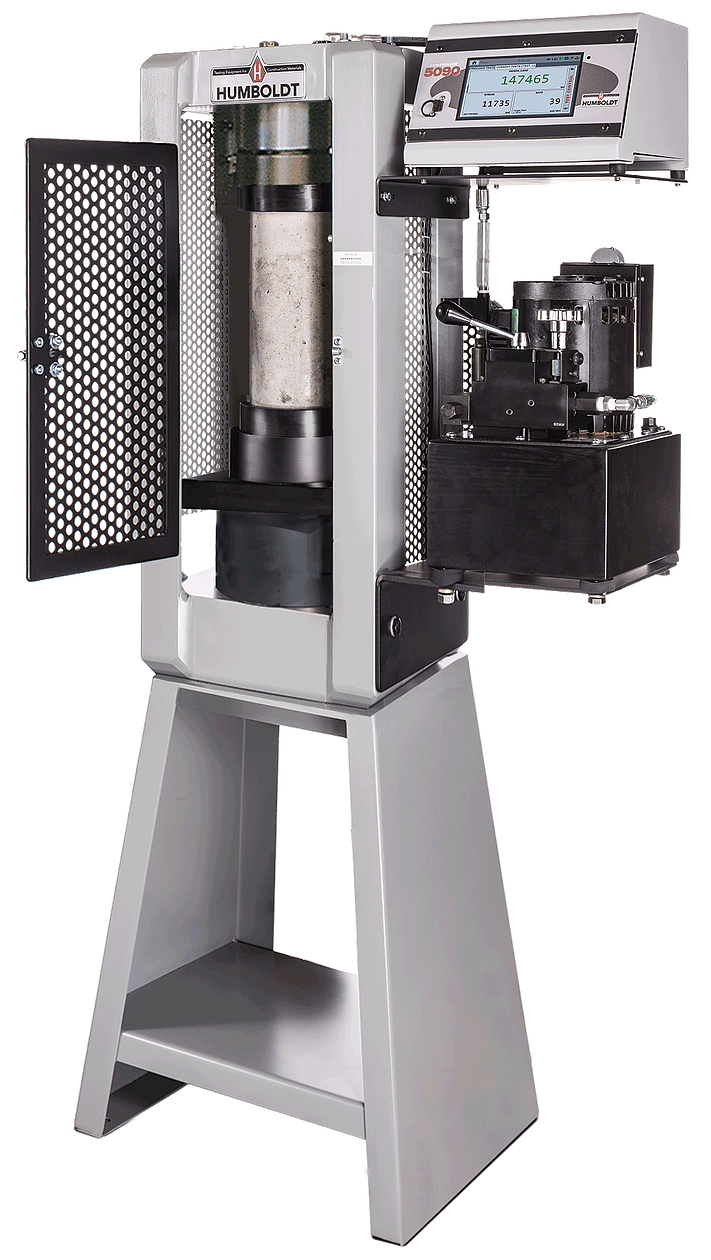

Humboldt’s HCM-3250 Series Concrete Compression Machines are built to be one of the strongest machines in their class, and are able to handle even the harshest testing regimen with ease. American-built, the HCM-3250 features a rigid, steel-welded load frame with four-inch thick upper and lower crossheads and a large, seven-inch diameter ram. The load frame is manufactured with structural steel, side members, and solid steel crossheads, which utilize a wrap-around box construction where each corner is fully-welded on both the inside and outside crosshead seams. This provides the rugged stability needed for accurate and repeatable test results year after year.
HCM-3250 compression machines come configured ready-to-test 6" x 12" concrete cylinders. In addition to the use of optional spacers and accessories, the machines can be configured to test 2" x 4", 3" x 6", and 4" x 8" cylinders, beams, 2-inch cement cubes, as well as splitting and tensile-strength tests.
Available with either a manual pump and digital display (HCM-5090) or an automatic pump and digital controller (HCM-5080). Manual and automatic machines are offered in 120V and 220V. Manual Pump load frames are offered with a .5hp or .75hp pump, and the automatic machine includes a 1hp pump. The Hydraulic pumps and digital indicators are positioned on the right side of the compression machine for easy access, increased productivity, and safer operation.
HCM-3250 machines are also available with automatic controller and pump configurations featuring Humboldt’s HCM-5080 Automatic Pump and Controller System, delivering one of the most versatile, accurate, and user-friendly concrete compression machine controllers available today.
