Saybolt Viscosity Bath, for Automatic Timers

Saybolt Viscosity Bath, for Automatic Timers

Product Options

  Part Number & Name Price QTY
Saybolt Viscosity Bath ONLY for Automatic Timers, 120V 60HzH-2166A
Saybolt Viscosity Bath ONLY for Automatic Timers, 120V 60Hz
$7,945.00
Saybolt Viscosity Bath ONLY for Automatic Timers, 220-240V 50/60HzH-2166A.4F
Saybolt Viscosity Bath ONLY for Automatic Timers, 220-240V 50/60Hz
Call
Add to Cart

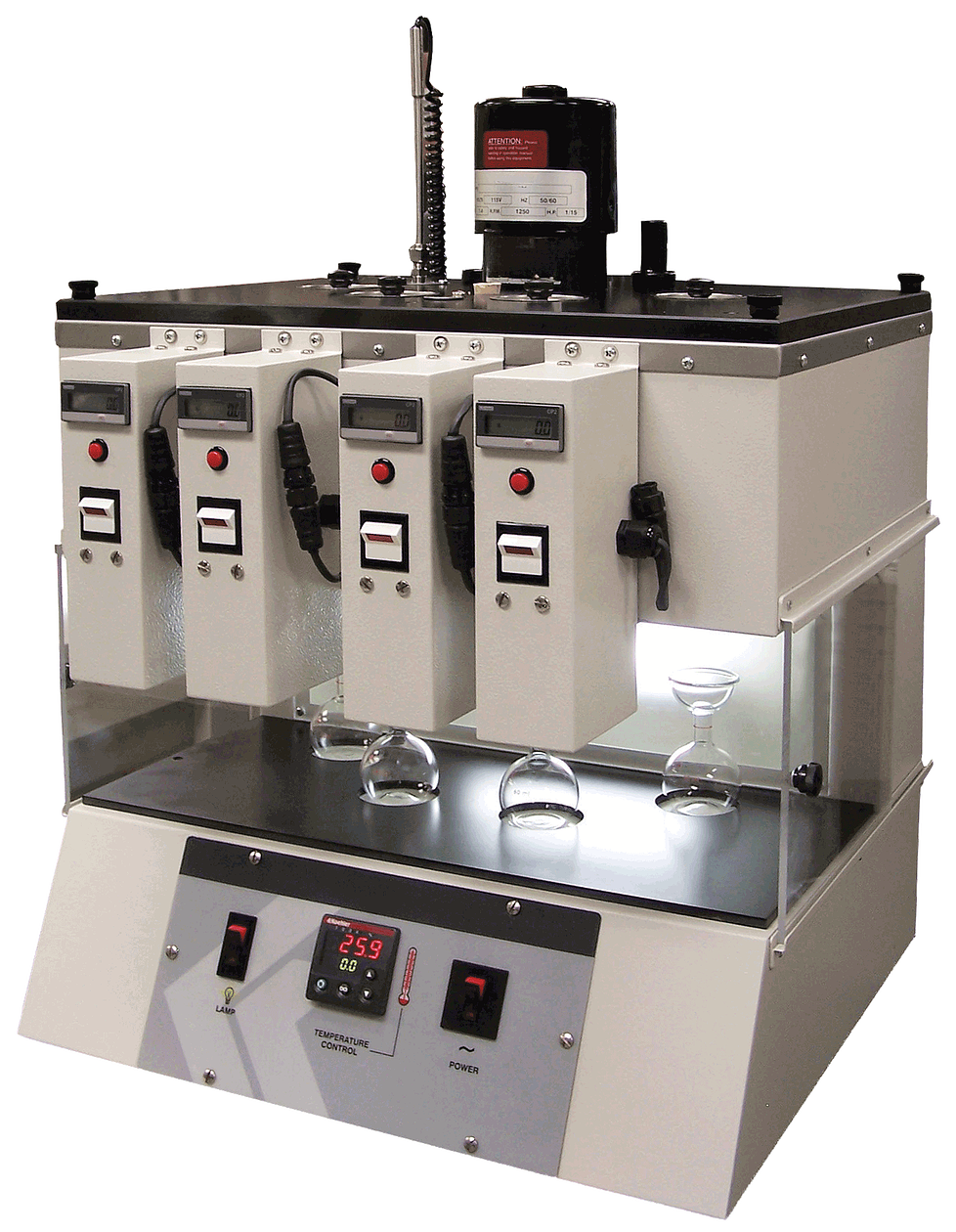

Saybolt Viscosity Bath, for Automatic Timers

Constant temperature viscosity bath designed for use with one to four Automatic Saybolt Viscosity Timing Sensors. Bath is sold with no timers, order auto timers separately. Features simple push-button controls and dual digital displays are used for easy setting and monitoring of the baths temperature.

With a capacity of four viscometers and 60ml receiving flasks, the bath features sliding draft shields, chemical-resistant alignment plates for handling of flasks and a glare-free fluorescent backlight for easy viewing of test sample. The insulated bath interior is constructed entirely of heavy-gage stainless steel and the built-in overflow pipe and drain valve simplifies filling the bath oil to the required level. A chemical resistant top plate provides insulation and is easily removed to allow for cleaning of the bath interior. A cooling coil for tap water or refrigerated coolant is provided for operation at near-ambient temperatures. Steel cabinet has leveling feet and a chemical-resitant polyurethane-epoxy finish.

Temperature range is ambient to 464°F (240°C) and temperature stability is ±0.05°F (±0.03°C). Bath capacity is 5 gallons (19L) and recommended bath medium is water or suitable heat transfer fluid.

Included accessories: Cleaning plunger; chained corks; oil strainer; withdrawal tube; tube nut wrench; orifice wrench; port closures; port covers and thermometer supports.

The Saybolt Viscosity Bath, for Automatic Timers supports the following standards: ASTM D88ASTM D244, E102; AASHTO T72

Accessories

  Part Number & Name Price QTY

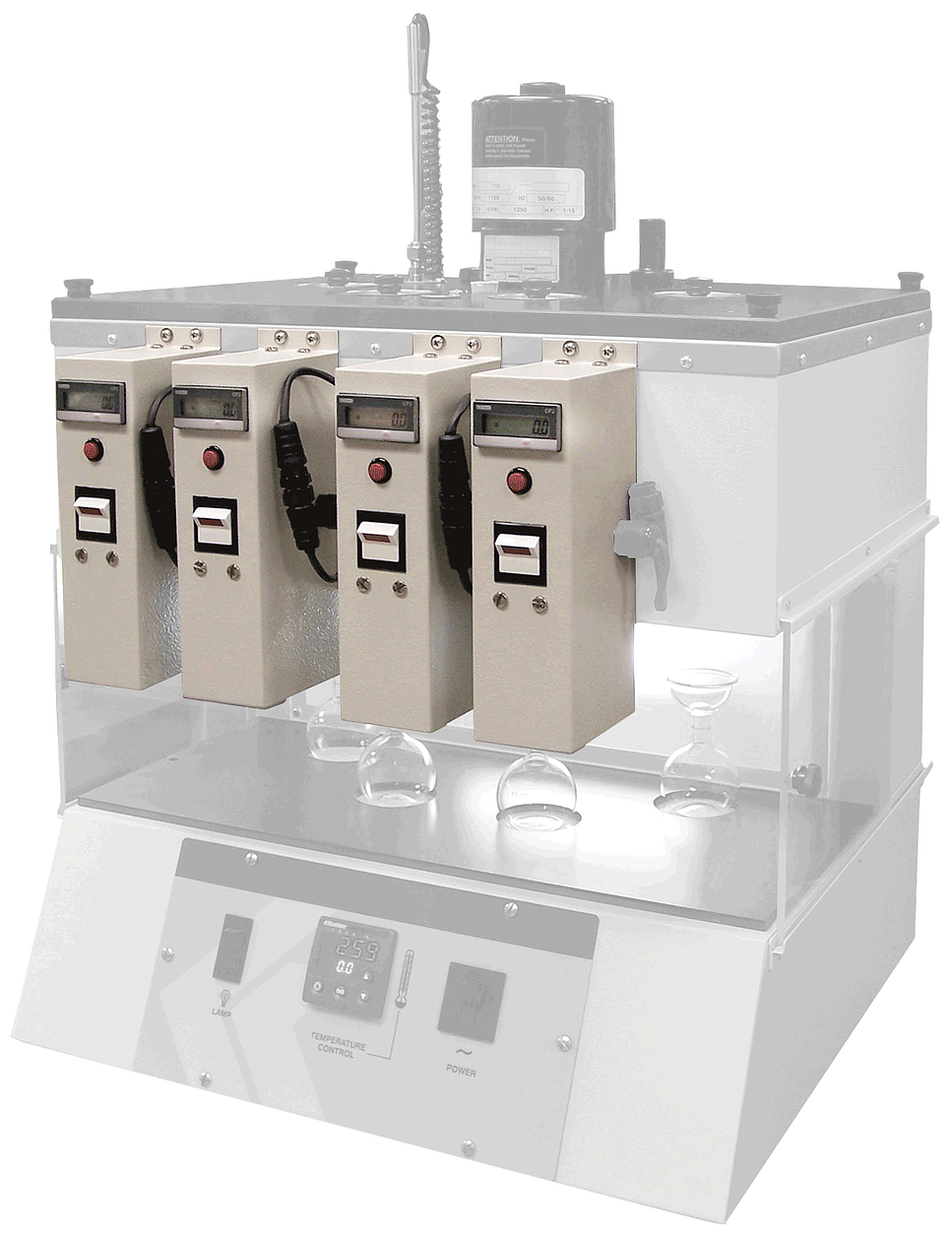

Automatic Timers for Saybolt Viscosity Bath Automatic Timers for Saybolt Viscosity BathClick for Options
Cleaning plunger H-2175
Cleaning plunger
$101.00
Bororsilicate glass receiving flask, 60ml (for H-2165) H-2176
Bororsilicate glass receiving flask, 60ml (for H-2165)
$46.20
Bororsilicate glass receiving flask, 60ml (for H-2166) H-2179
Bororsilicate glass receiving flask, 60ml (for H-2166)
$137.00
Withdrawal tube H-2177
Withdrawal tube
$71.00
Oil strainer H-2178
Oil strainer
$205.00
Technical oil, white, (1 gal.) suitable for use up to 230°F (110°C) H-2189
Technical oil, white, (1 gal.) suitable for use up to 230°F (110°C)
$61.00
High-temp. Dow-Corning 200 fluid (100 centistokes), 5 gallon, wt.40lb (18kg) H-2199
High-temp. Dow-Corning 200 fluid (100 centistokes), 5 gallon, wt.40lb (18kg)
$890.00
Displacement ring H-2194
Displacement ring
$162.00
Thermometer support H-2195
Thermometer support
$84.00
Orifice wrench H-2196
Orifice wrench
$167.00
Socket wrench H-2197
Socket wrench
$131.00
Add to Cart

Replacement Parts

  Part Number & Name Price QTY
Stainless steel universal orifice only H-2173
Stainless steel universal orifice only
$232.00
Stainless steel Furol orifice only H-2174
Stainless steel Furol orifice only
$234.00
Brass Sayboldt viscometer tube w/ stainless steel universal orifice H-2180
Brass Sayboldt viscometer tube w/ stainless steel universal orifice
$816.00
Brass saybolt viscometer tube w/stainless steel furol orifice H-2182
Brass saybolt viscometer tube w/stainless steel furol orifice
$552.00
Stainless saybolt viscometer Tube w/stainless steel furol orifice, includes wrench H-2183
Stainless saybolt viscometer Tube w/stainless steel furol orifice, includes wrench
$1,005.00
Brass saybolt viscometer tube w/stainless steel universal and furol orifice, includes wrench H-2184
Brass saybolt viscometer tube w/stainless steel universal and furol orifice, includes wrench
$908.00
Stainless saybolt viscometer tube w/ universal and furol orifice, includes wrench H-2185
Stainless saybolt viscometer tube w/ universal and furol orifice, includes wrench
$1,376.00
Sayboldt viscometer tube, Stainless steel H-2171
Sayboldt viscometer tube, Stainless steel
$957.00
Sayboldt viscometer tube, Brass H-2172
Sayboldt viscometer tube, Brass
$391.00
Add to Cart

Standards

Standards
ASTM D88
ASTM D244
E102; AASHTO T72
