Softening Point Apparatus Set w/ Hotplate

Softening Point Apparatus Set w/ Hotplate

Product Options

  Part Number & Name Price QTY
Softening Point Apparatus Set w/ Hotplate, Electric, 120V, 60HzH-1596
Softening Point Apparatus Set w/ Hotplate, Electric, 120V, 60Hz
$430.00
Softening Point Apparatus Set w/ Hotplate, Electric, 220V, 50/60HzH-1596.4F
Softening Point Apparatus Set w/ Hotplate, Electric, 220V, 50/60Hz
$490.00
Add to Cart

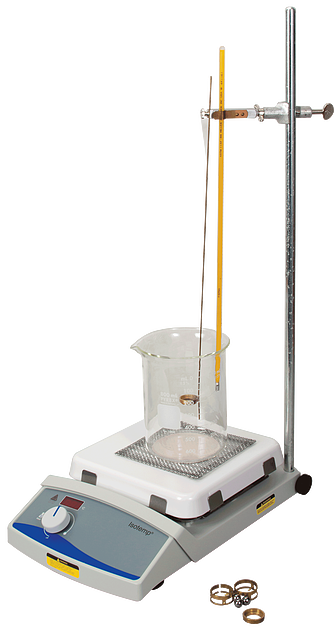

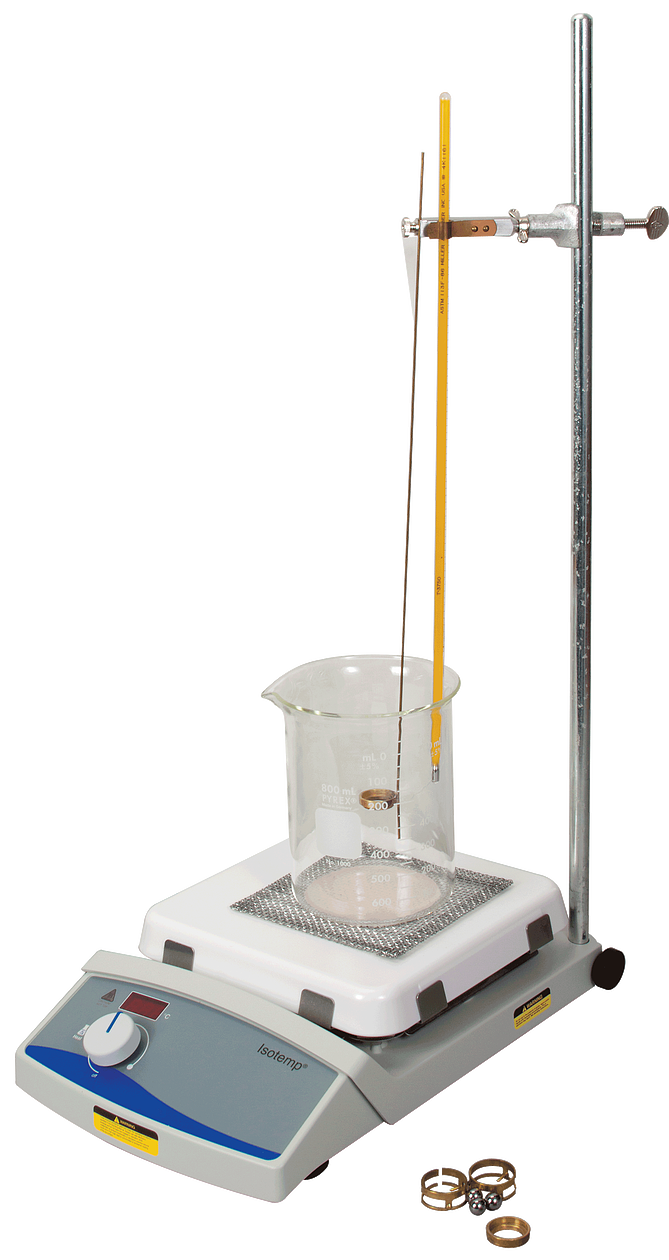

Softening Point Apparatus Set w/ Hotplate

Single ring and ball method softening point apparatus set, including hotplate. This set can be used for single determinations such as: asphalts, pitches, tars and most resins. Includes 6" x 6" electric hotplate as a heat source rather than a gas burner. The hotplate provides an easy-to-set analog temperature control knob with graduated scale and LED display. Temperature range is: ambient to 540°C (Ambient to 1004°F). Includes beaker, support stand, 1 ring, wire gauze with ceramic center, thermometer clamp, 1 shouldered ring and stem with hardened steel ball.

Order necessary ASTM mercury thermometer locally. Illinois law prohibits us from selling mercury thermometers.

The Softening Point Apparatus Set w/ Hotplate supports the following standards: ASTM D36, ASTM E28, AASHTO T53

Replacement Parts

  Part Number & Name Price QTY

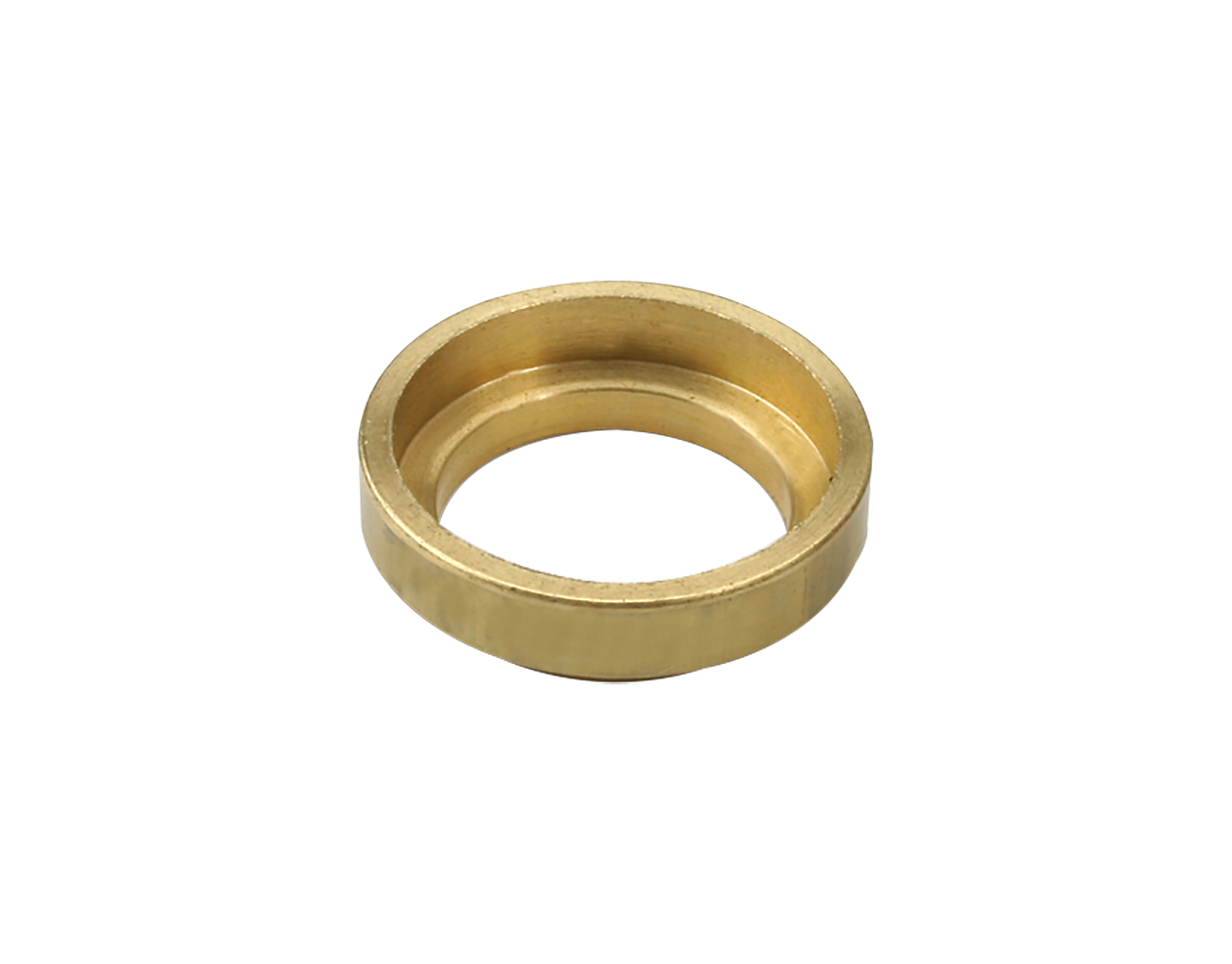

Shouldered Ring, Brass H-1575
Shouldered Ring, Brass
$22.00
Hardened Steel Ball, 10 pack H-1580
Hardened Steel Ball, 10 pack
$2.80
Ball Centering Guide H-1588
Ball Centering Guide
$31.00
Ring and Stem Assembly, 16" (406mm) long brass wire stem with shouldered brass ring H-1602
Ring and Stem Assembly, 16" (406mm) long brass wire stem with shouldered brass ring
$6.60
Hook Clamp H-8900
Hook Clamp
$10.60
Thermometer Clamp H-8950
Thermometer Clamp
$17.60
Thermometer Clamp H-8980
Thermometer Clamp
$20.00
Graduated Glass Beaker Graduated Glass BeakerClick for Options
Hotplate, Economy Basic Hotplate, Economy BasicClick for Options
Wire Gauze, Ceramic Center Wire Gauze, Ceramic CenterClick for Options
Add to Cart

Standards

Standards
ASTM D36
ASTM E28
AASHTO T53
